UNI Flex tizimi

UNI Flex tizimi

Tavsif:

UNI flex tizimi zamonaviy dizaynlashtirilgan chiziqli yorug'likdir. Dizayn g'oyasi zamonaviy yoritishning asosiy oqimidan kelib chiqadi. Shunday qilib, u tijorat/ofis va boshqa turli xil yoritish ilovalarida mijozlar tomonidan keng qo'llaniladi.UNI Flex tizimlari yorug'lik moduli o'rtasida hech qanday bo'shliqsiz tugun ulagichi bilan bir nechta-to'g'ri/L/R/X/T turli yo'nalishlari bilan bog'lanishi mumkin. Moslashuvchan kompyuter qopqog'i havoladan keyin pechning yoritilishini ta'minlaydi. Ushbu maxsus xususiyatlar uni flex tizimini LED yorug'lik sohasida tobora ommalashib bormoqda.









Xususiyat:

>Turli xil yoritish modullari

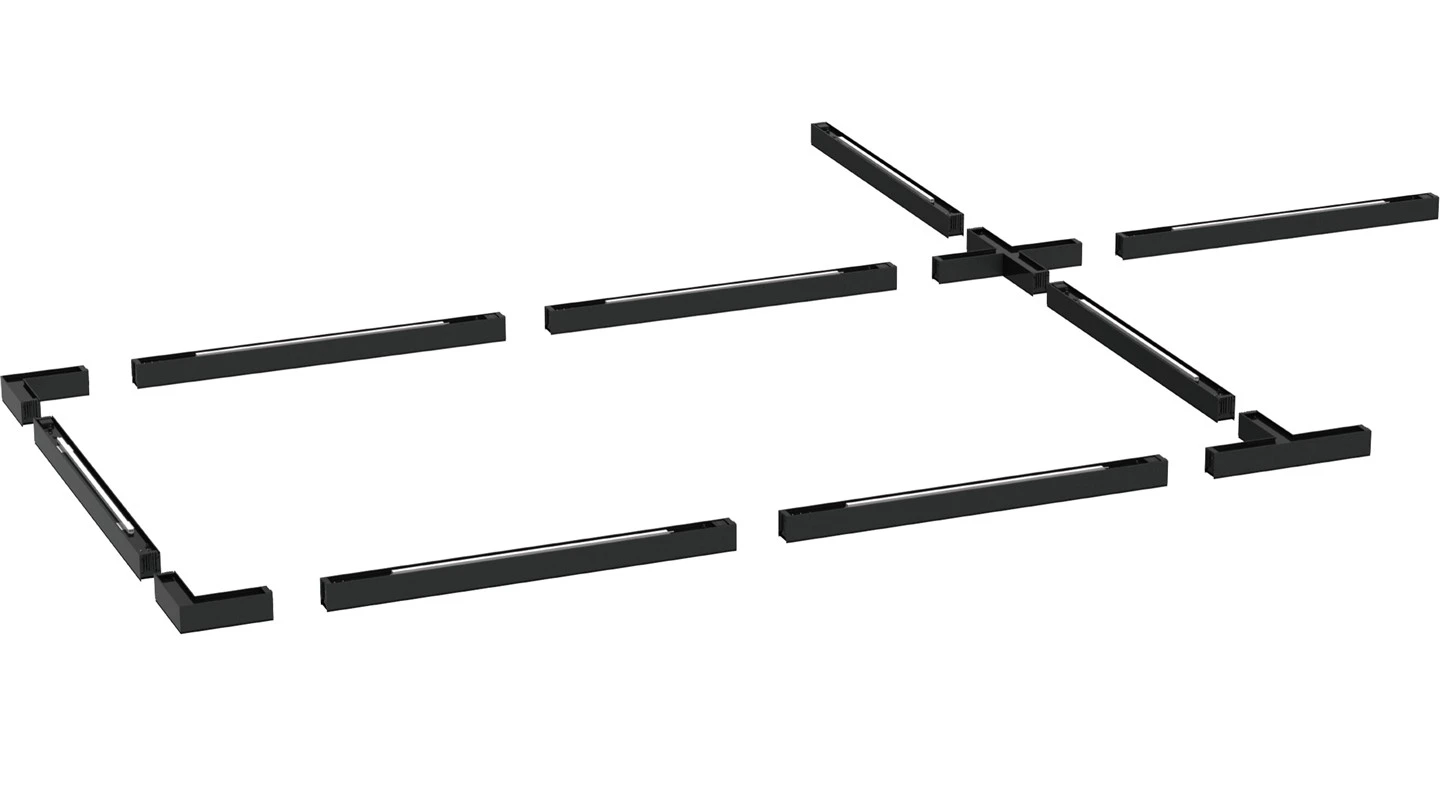

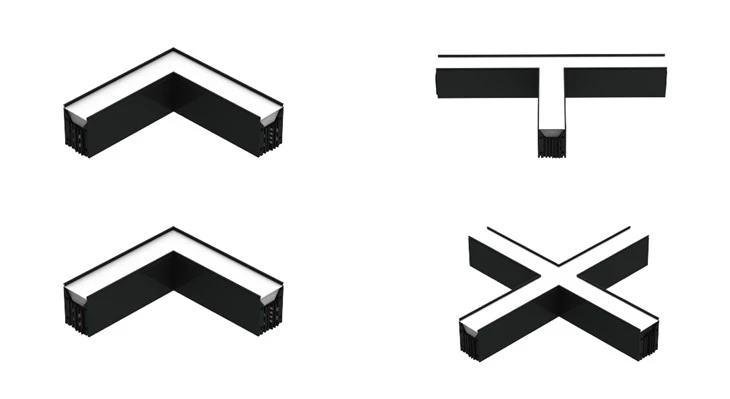

>Bir nechta havola uchun to'g'ridan-to'g'ri / L / R / T / X tugun konnektori

>Bir nechta havoladan keyin pechning yorug'ligi uchun moslashuvchan kompyuter qopqog'i

>Variant uchun turli markali haydovchi

>Variantlar sifatida CCT va vatt kaliti

Send Inquiry
Download
Description
Technical Parameters

KIRISH:

UNI Flex o'rnatilgan chiziqli yoritish, to'xtatilgan chiziqli yoritgichlar, sirtga o'rnatilgan chiziqli chiroqlar, yo'l yoritgichlari, shuningdek, ulanadigan dizaynlashtirilgan LED yoritgichlar bo'lishi mumkin. U maksimal ulanish uzunligi bo'yicha cheklovsiz turli xil yoritish imkoniyatlari, o'rnatish va turli ulanishlarga ega. Yuqorida aytib o'tilgan turli xil xususiyatlar UNI Flex linearni juda zamonaviy qiladi va ofis yoritgichlari, tijorat yoritgichlari, chakana yoritgichlar va hokazolarda keng qo'llaniladi. Chiziqli chiroqlar orasidagi masofa qancha bo'lishi kerak? Ulanish cheklovi bo'lmagan UNI Flex-ni ko'rib chiqishingiz kerak.



Diffuzor

UGR

Buyurtma kodi

Nominal quvvat

LM/W

Lumen

SDCM/Ra

IP klassi

Mahsulot o'lchami

Funktsiya

Prizmatik

UGR
<22

LL400-04B-AT1-40F01

20-40W

Tip.130

Tip.2600-5200

SDCM<3,<5/Ra80,90

IP20

L1150xW60xH80

YOQILGAN-OFK

Prizmatik

UGR
<22

LL400-04B-AT1-40V01

20-40W

Tip.130

Tip.2600-5200

SDCM<3,<5/Ra80,90

IP20

L1150xW60xH80

PWM (MS uchun)

Prizmatik

UGR
<22

LL400-04B-AT1-40D01

20-40W

Tip.130

Tip.2600-5200

SDCM<3,<5/Ra80,90

IP20

L1150xW60xH80

DALI

Prizmatik

UGR
<22

LL400-05B-AT1-50F01

30-50W

Tip.130

Tip.3900-6500

SDCM<3,<5/Ra80,90

IP20

L1437xW60xH80

YOQILGAN-OFK

Prizmatik

UGR
<22

LL400-05B-AT1-50V01

30-50W

Tip.130

Tip.3900-6500

SDCM<3,<5/Ra80,90

IP20

L1437xW60xH80

PWM (MS uchun)

Prizmatik

UGR
<22

LL400-05B-AT1-50D01

30-50W

Tip.130

Tip.3900-6500

SDCM<3,<5/Ra80,90

IP20

L1437xW60xH80

DALI

Prizmatik

UGR
<22

LL400-06B-AT1-60F01

40-60W

Tip.130

Tip.5200-7800

SDCM<3,<5/Ra80,90

IP20

L1723xW60xH80

YOQILGAN-OFK

Prizmatik

UGR
<22

LL400-06B-AT1-60V01

40-60W

Tip.130

Tip.5200-7800

SDCM<3,<5/Ra80,90

IP20

L1723xW60xH80

PWM (MS uchun)

Prizmatik

UGR
<22

LL400-06B-AT1-60D01

40-60W

Tip.130

Tip.5200-7800

SDCM<3,<5/Ra80,90

IP20

L1723xW60xH80

DALI

Opal

/

LL410-04B-AT1-40F01

20-40W

Tip.150

Tip.3000-6000

SDCM<3,<5/Ra80,90

IP20

L1150xW60xH80

YOQILGAN-OFK

Opal

/

LL410-04B-AT1-40V01

20-40W

Tip.150

Tip.3000-6000

SDCM<3,<5/Ra80,90

IP20

L1150xW60xH80

PWM (MS uchun)

Opal

/

LL410-04B-AT1-40D01

20-40W

Tip.150

Tip.3000-6000

SDCM<3,<5/Ra80,90

IP20

L1150xW60xH80

DALI

Opal

/

LL410-05B-AT1-50F01

30-50W

Tip.150

Tip.3000-6000

SDCM<3,<5/Ra80,90

IP20

L1437xW60xH80

YOQILGAN-OFK

Opal

/

LL410-05B-AT1-50V01

30-50W

Tip.150

Tip.3000-6000

SDCM<3,<5/Ra80,90

IP20

L1437xW60xH80

PWM (MS uchun)

Opal

/

LL110-05B-DT1-40D01

30-50W

Tip.150

Tip.3000-6000

SDCM<3,<5/Ra80,90

IP20

L1437xW60xH80

DALI

Opal

/

LL410-05B-AT1-50D01

40-60W

Tip.150

Tip.3000-6000

SDCM<3,<5/Ra80,90

IP20

L1723xW60xH80

YOQILGAN-OFK

Opal

/

LL110-05B-DT1-40D01

40-60W

Tip.150

Tip.3000-6000

SDCM<3,<5/Ra80,90

IP20

L1723xW60xH80

PWM (MS uchun)

Opal

/

LL110-05B-DT1-40V01

40-60W

Tip.150

Tip.3000-6000

SDCM<3,<5/Ra80,90

IP20

L1723xW60xH80

DALI

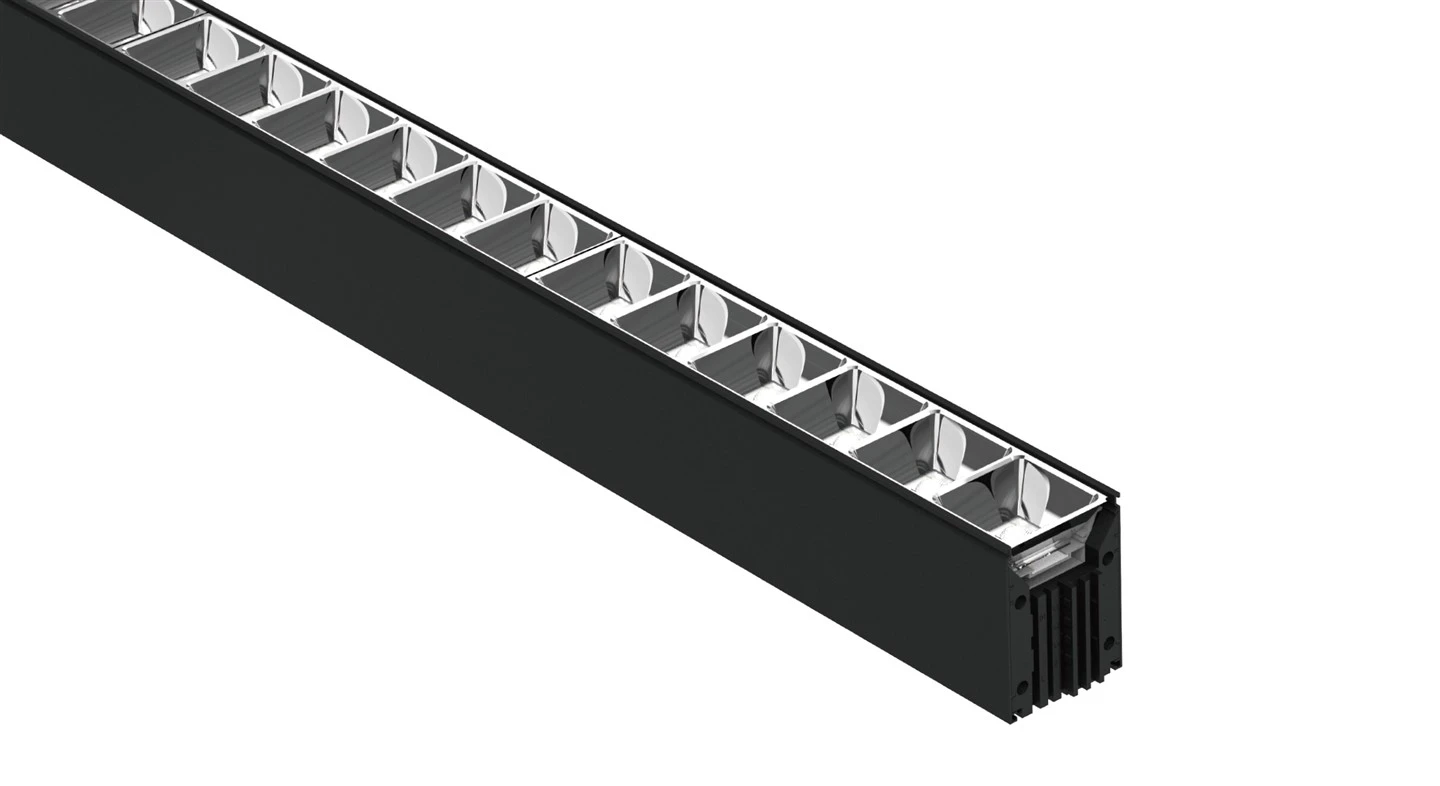

Reflektor

UGR
<17

LL420-04B-RT1-40F01

20-40W

Tip.150

Tip.3000-6000

SDCM<3,<5/Ra80,90

IP20

L1150xW60xH80

YOQILGAN-OFK

Reflektor

UGR
<17

LL420-04B-RT1-40V01

20-40W

Tip.150

Tip.3000-6000

SDCM<3,<5/Ra80,90

IP20

L1150xW60xH80

PWM (MS uchun)

Reflektor

UGR
<17

LL420-04B-RT1-40D01

20-40W

Tip.150

Tip.3000-6000

SDCM<3,<5/Ra80,90

IP20

L1150xW60xH80

DALI

Reflektor

UGR
<17

LL420-05B-RT1-50F01

30-50W

Tip.150

Tip.4500-7500

SDCM<3,<5/Ra80,90

IP20

L1437xW60xH80

YOQILGAN-OFK

Reflektor

UGR
<17

LL420-05B-RT1-50V01

30-50W

Tip.150

Tip.4500-7500

SDCM<3,<5/Ra80,90

IP20

L1437xW60xH80

PWM (MS uchun)

Reflektor

UGR
<17

LL420-05B-RT1-50D01

30-50W

Tip.150

Tip.4500-7500

SDCM<3,<5/Ra80,90

IP20

L1437xW60xH80

DALI

Reflektor

UGR
<17

LL420-06B-RT1-60F01

40-60W

Tip.150

Tip.6000-9000

SDCM<3,<5/Ra80,90

IP20

L1723xW60xH80

YOQILGAN-OFK

Reflektor

UGR
<17

LL420-06B-RT1-60V01

40-60W

Tip.150

Tip.6000-9000

SDCM<3,<5/Ra80,90

IP20

L1723xW60xH80

PWM (MS uchun)

Reflektor

UGR
<17

LL420-06B-RT1-60D01

40-60W

Tip.150

Tip.6000-9000

SDCM<3,<5/Ra80,90

IP20

L1723xW60xH80

DALI

Ob'ektiv

UGR
<14

LL430-04B-CT1-40F01

20-40W

Tip.160

Tip.3200-6400

SDCM<3,<5/Ra80,90

IP20

L1150xW60xH80

YOQILGAN-OFK

Ob'ektiv

UGR
<14

LL430-04B-CT1-40V01

20-40W

Tip.160

Tip.3200-6400

SDCM<3,<5/Ra80,90

IP20

L1150xW60xH80

PWM (MS uchun)

Ob'ektiv

UGR
<14

LL430-04B-CT1-40D01

20-40W

Tip.160

Tip.3200-6400

SDCM<3,<5/Ra80,90

IP20

L1150xW60xH80

DALI

Ob'ektiv

UGR
<14

LL430-05B-CT1-50F01

30-50W

Tip.160

Tip.4800-8000

SDCM<3,<5/Ra80,90

IP20

L1437xW60xH80

YOQILGAN-OFK

Ob'ektiv

UGR
<14

LL430-05B-CT1-50V01

30-50W

Tip.160

Tip.4800-8000

SDCM<3,<5/Ra80,90

IP20

L1437xW60xH80

PWM (MS uchun)

Ob'ektiv

UGR
<14

LL430-05B-CT1-50D01

30-50W

Tip.160

Tip.4800-8000

SDCM<3,<5/Ra80,90

IP20

L1437xW60xH80

DALI

Ob'ektiv

UGR
<14

LL430-06B-CT1-60F01

40-60W

Tip.160

Tip.6400-9600

SDCM<3,<5/Ra80,90

IP20

L1723xW60xH80

YOQILGAN-OFK

Ob'ektiv

UGR
<14

LL430-06B-CT1-60V01

40-60W

Tip.160

Tip.6400-9600

SDCM<3,<5/Ra80,90

IP20

L1723xW60xH80

PWM (MS uchun)

Ob'ektiv

UGR
<14

LL430-06B-CT1-60D01

40-60W

Tip.160

Tip.6400-9600

SDCM<3,<5/Ra80,90

IP20

L1723xW60xH80

DALI

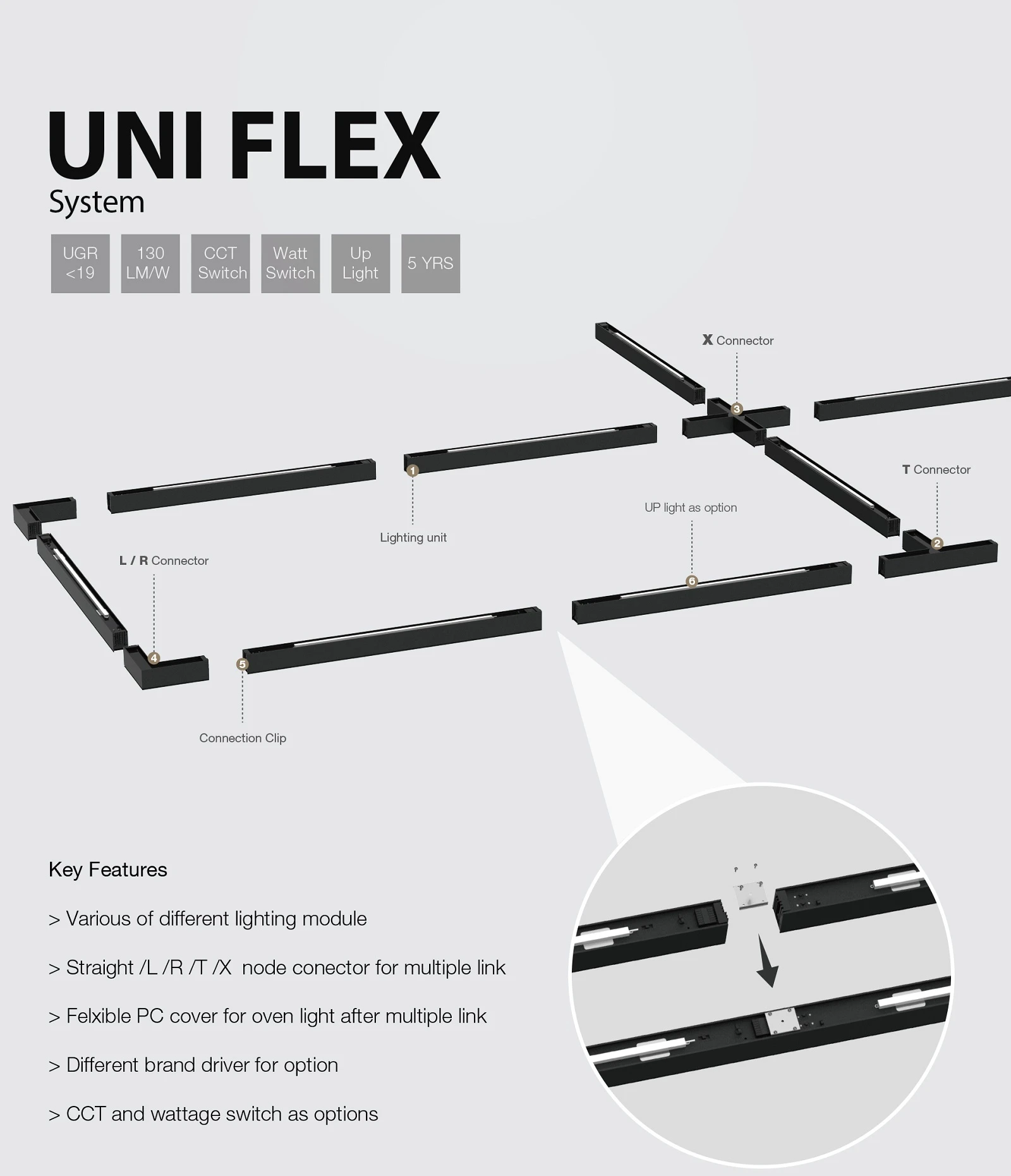

uniflex01

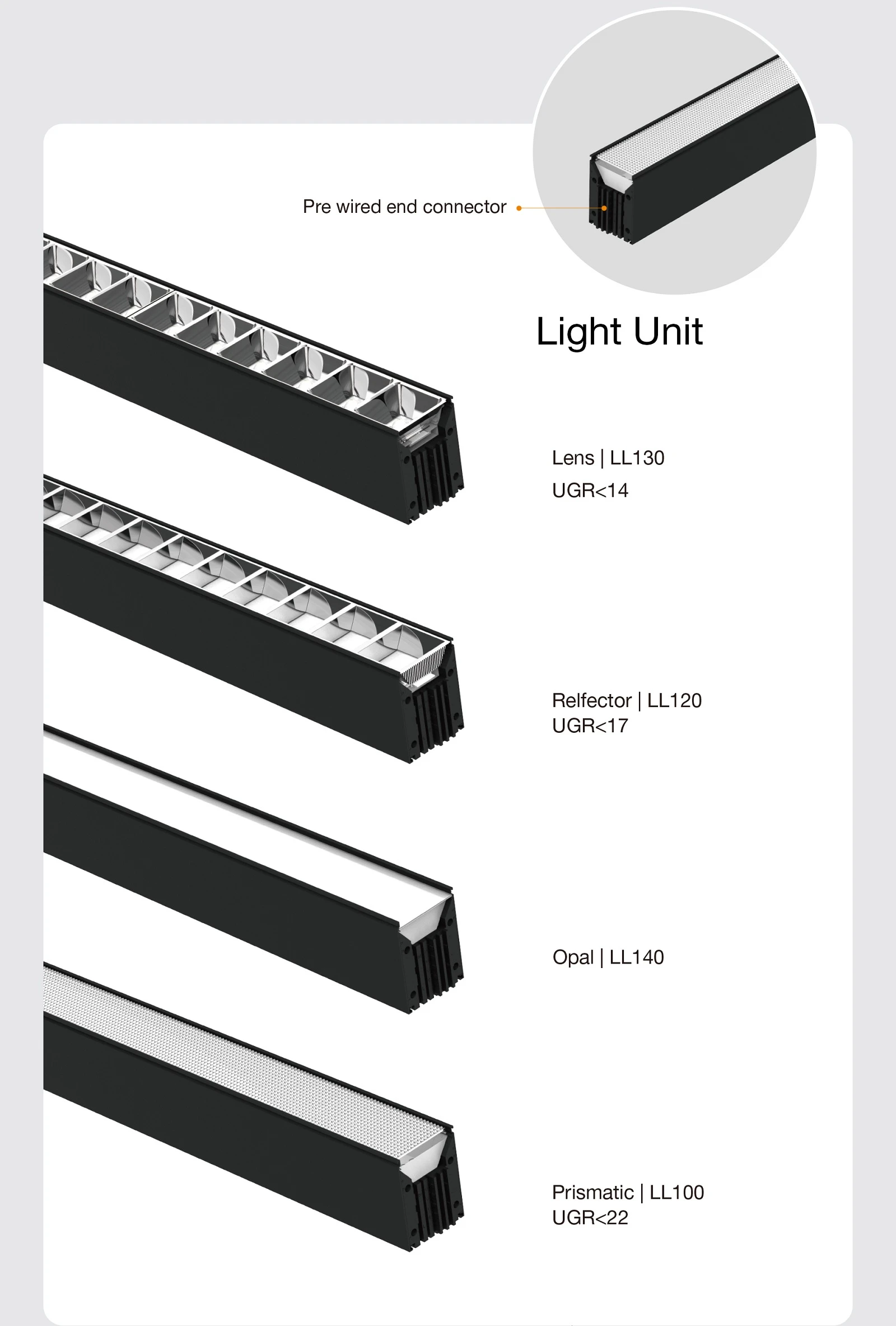

uniflex02

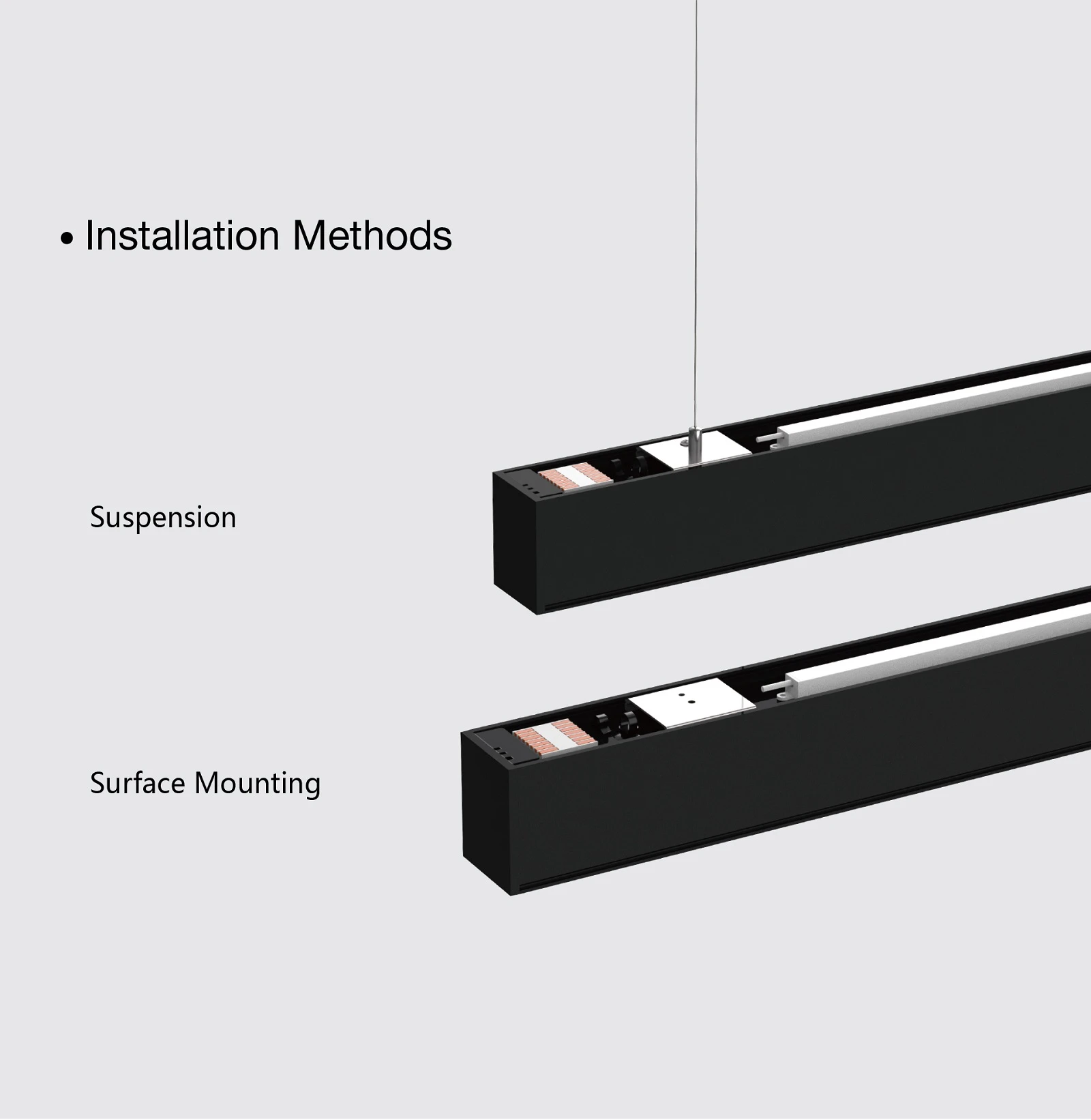

uniflex03

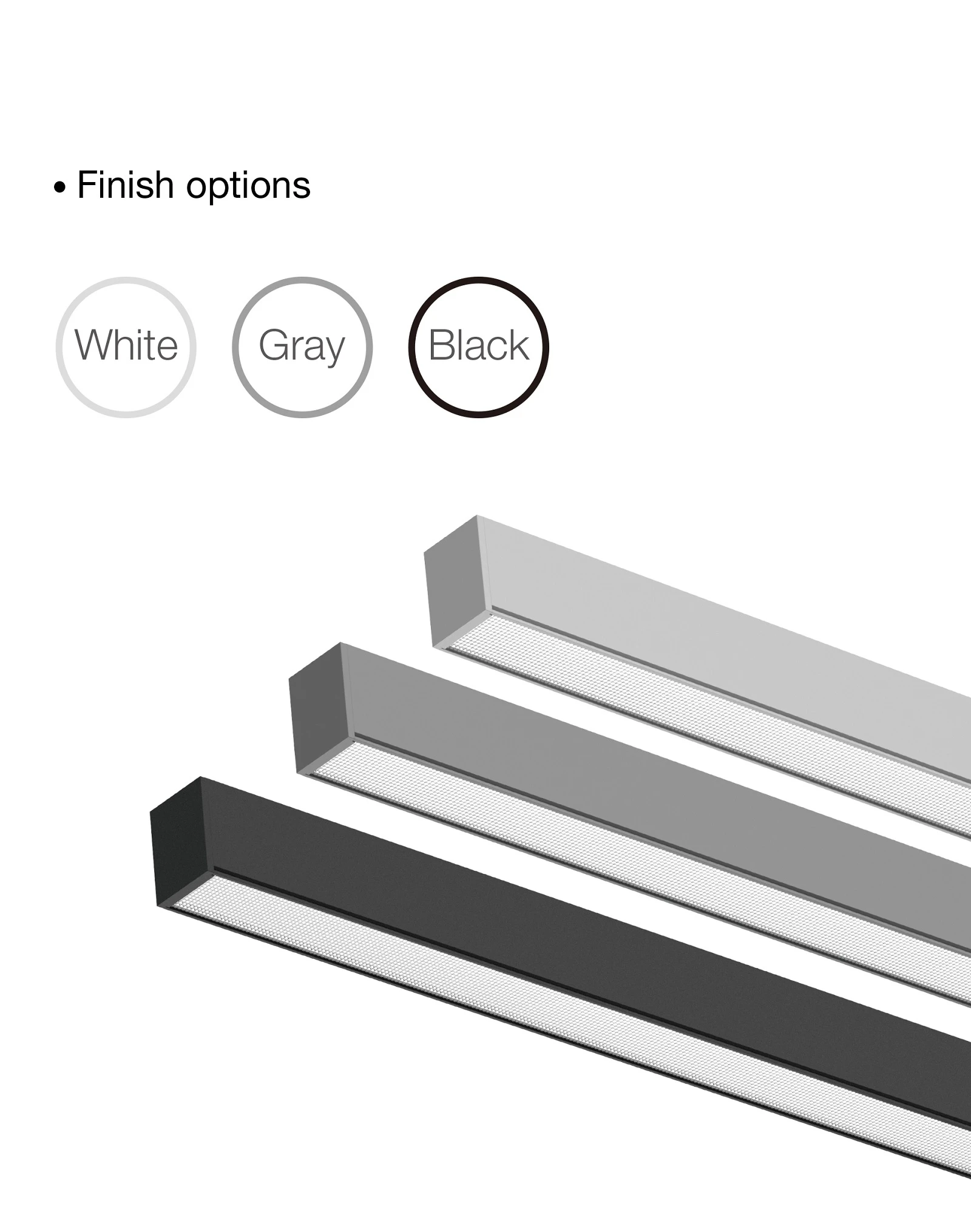

uniflex04

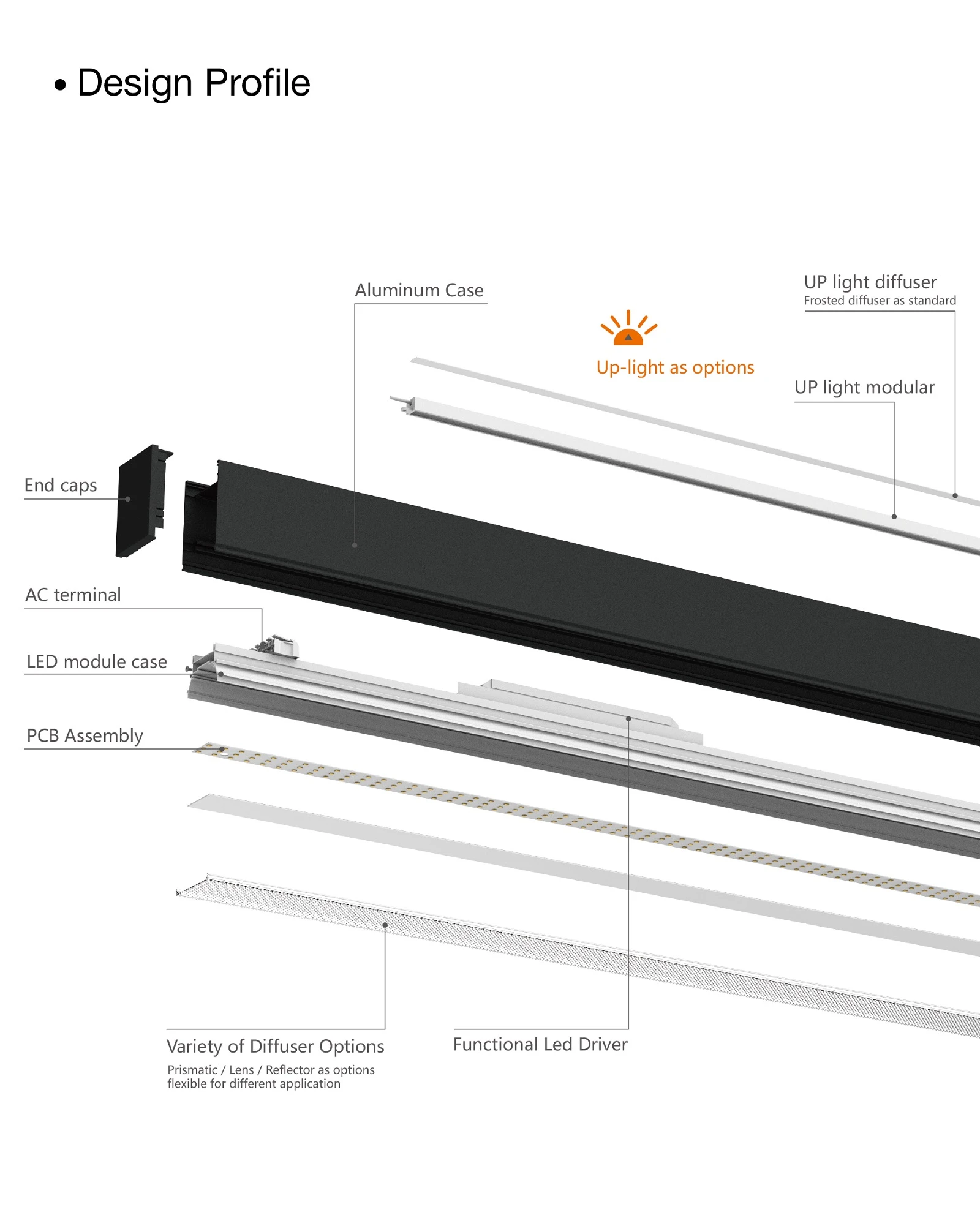

uniflex05

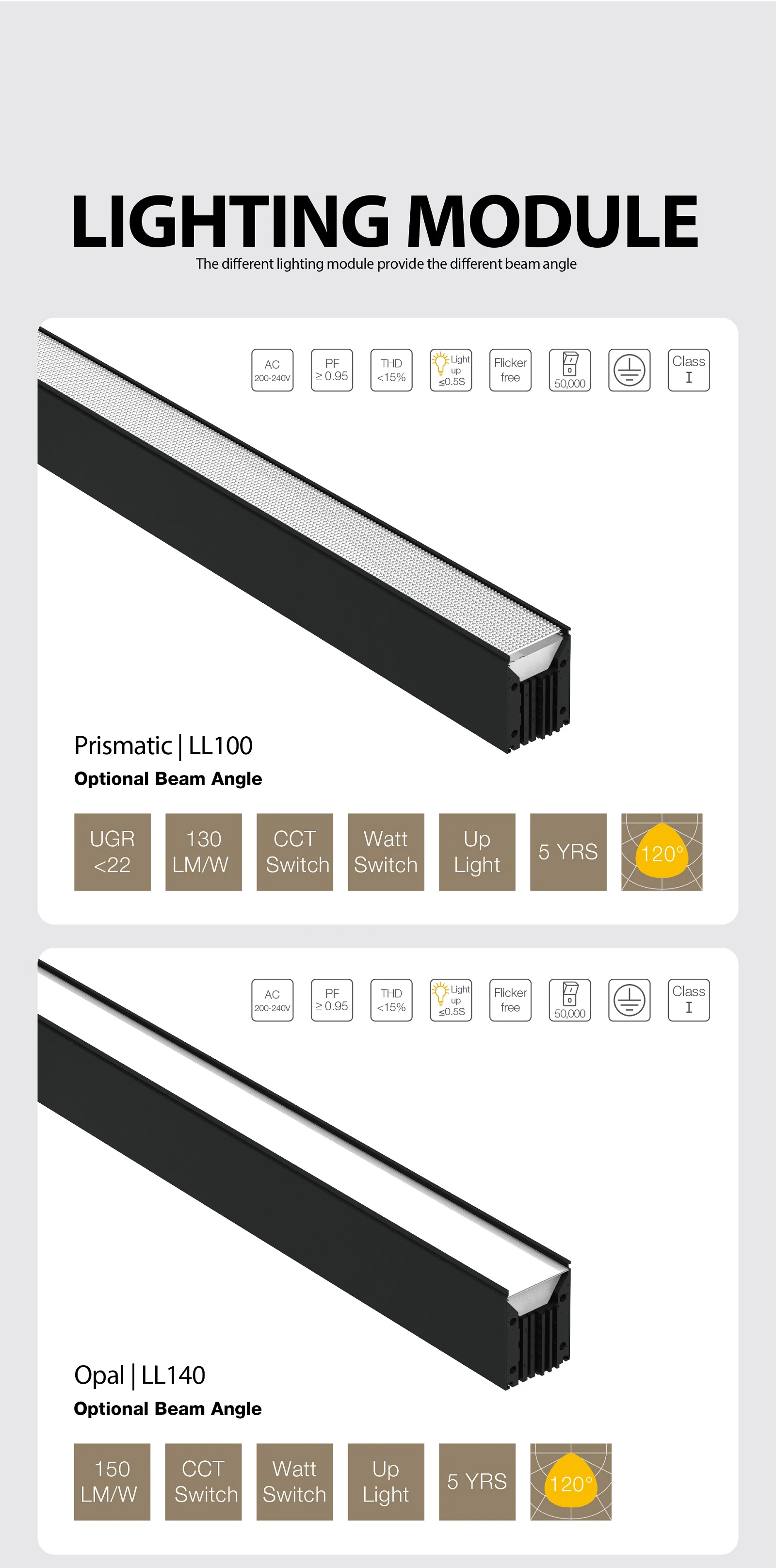

uniflex06

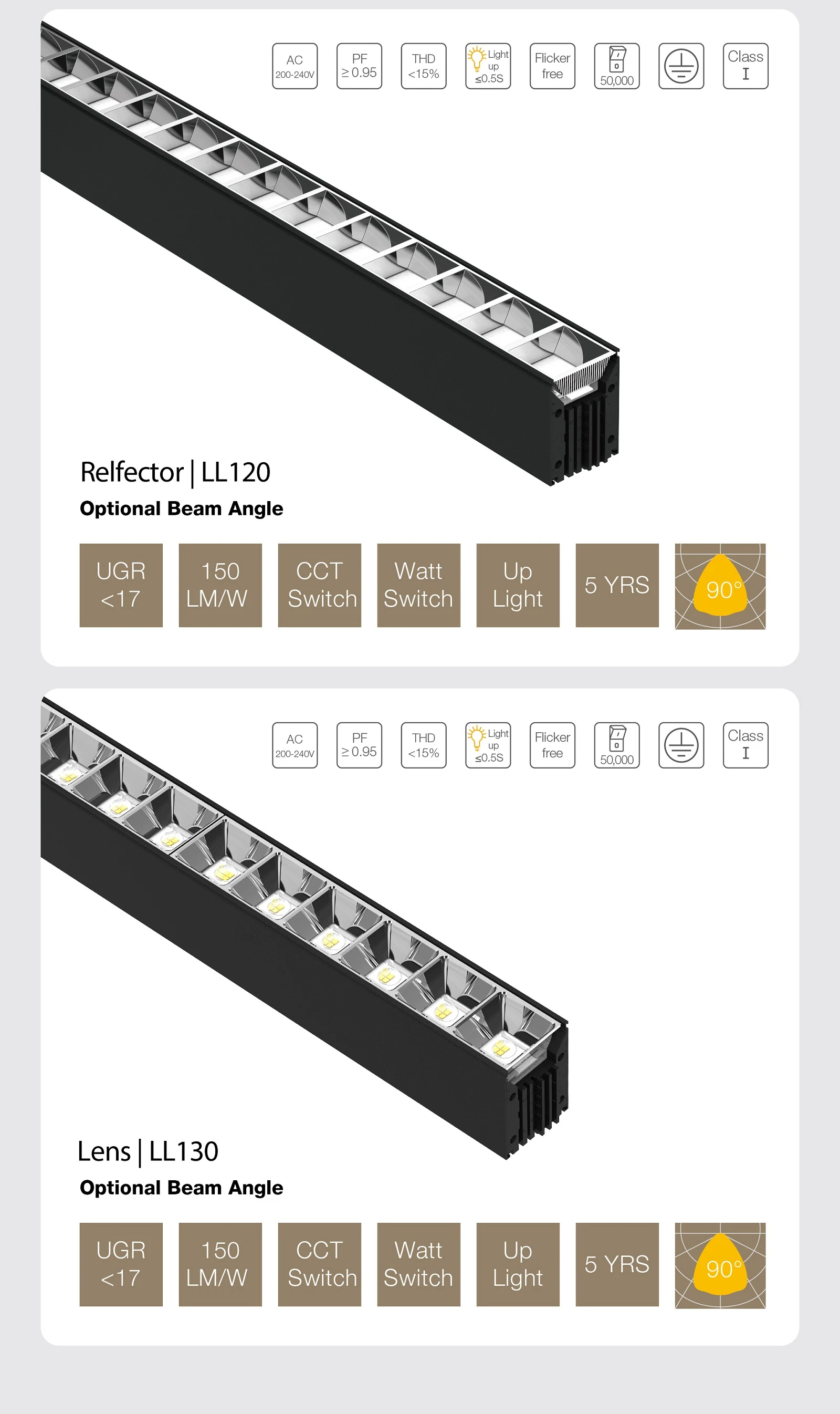

uniflex07

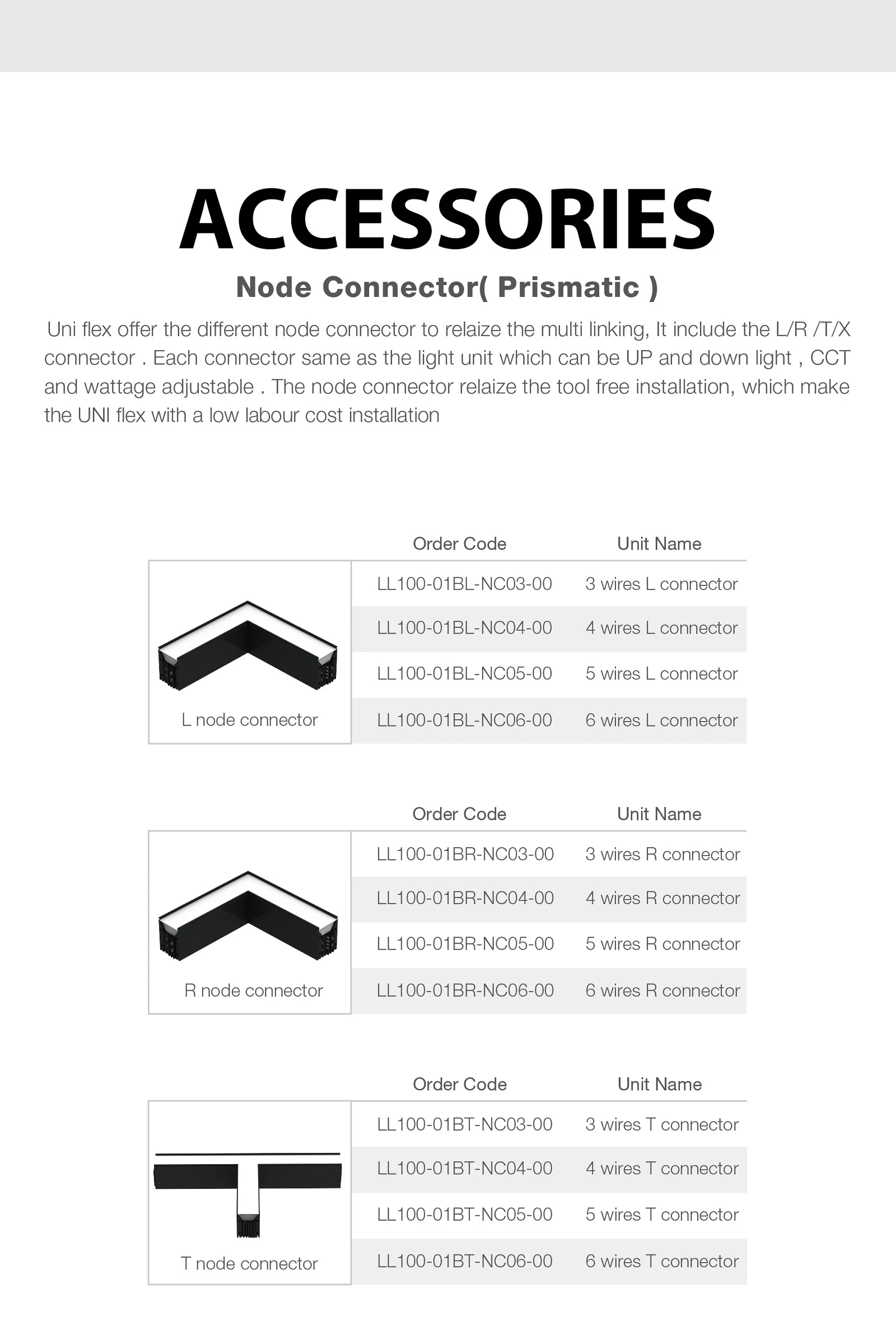

uniflex08

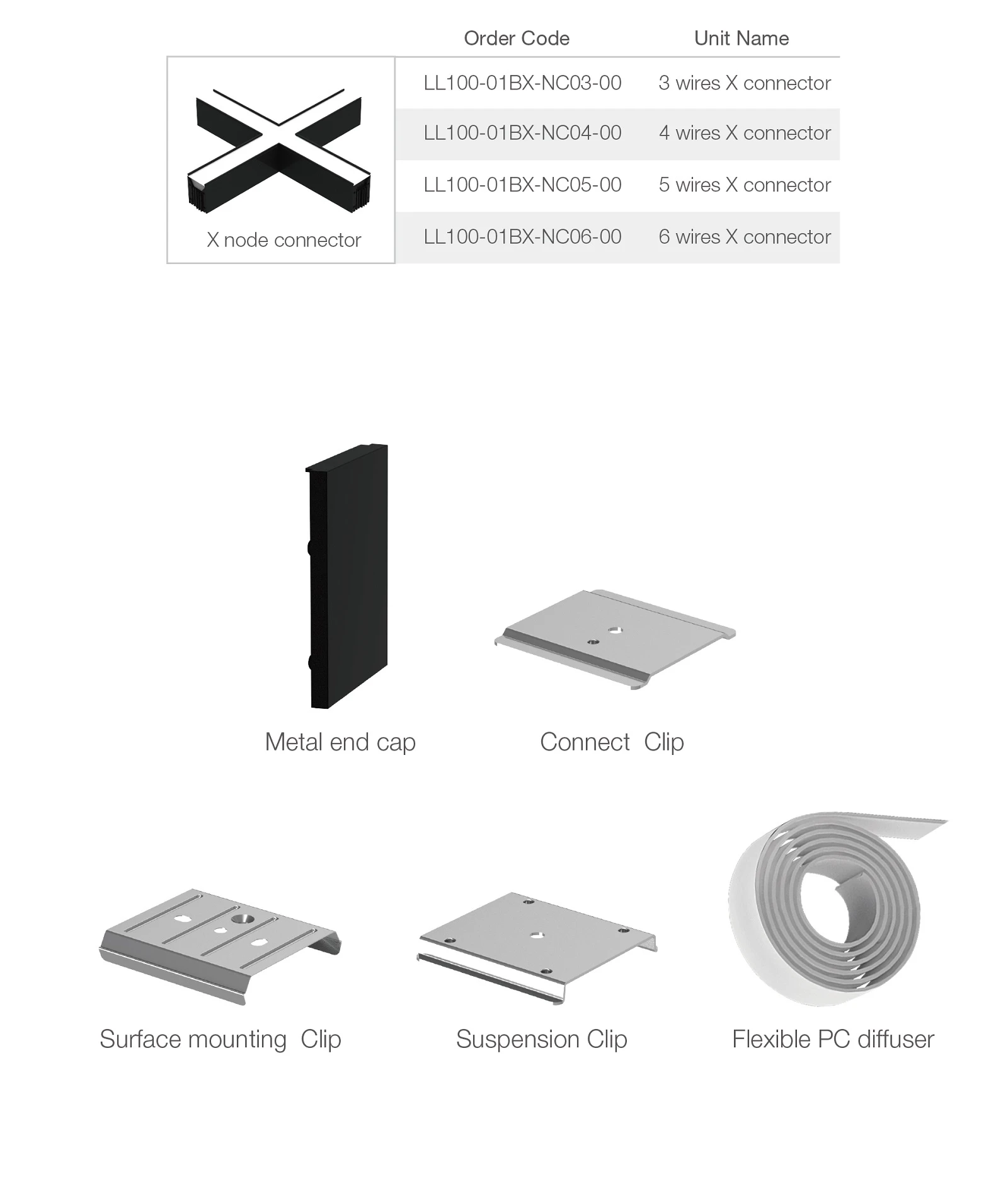

uniflex09
