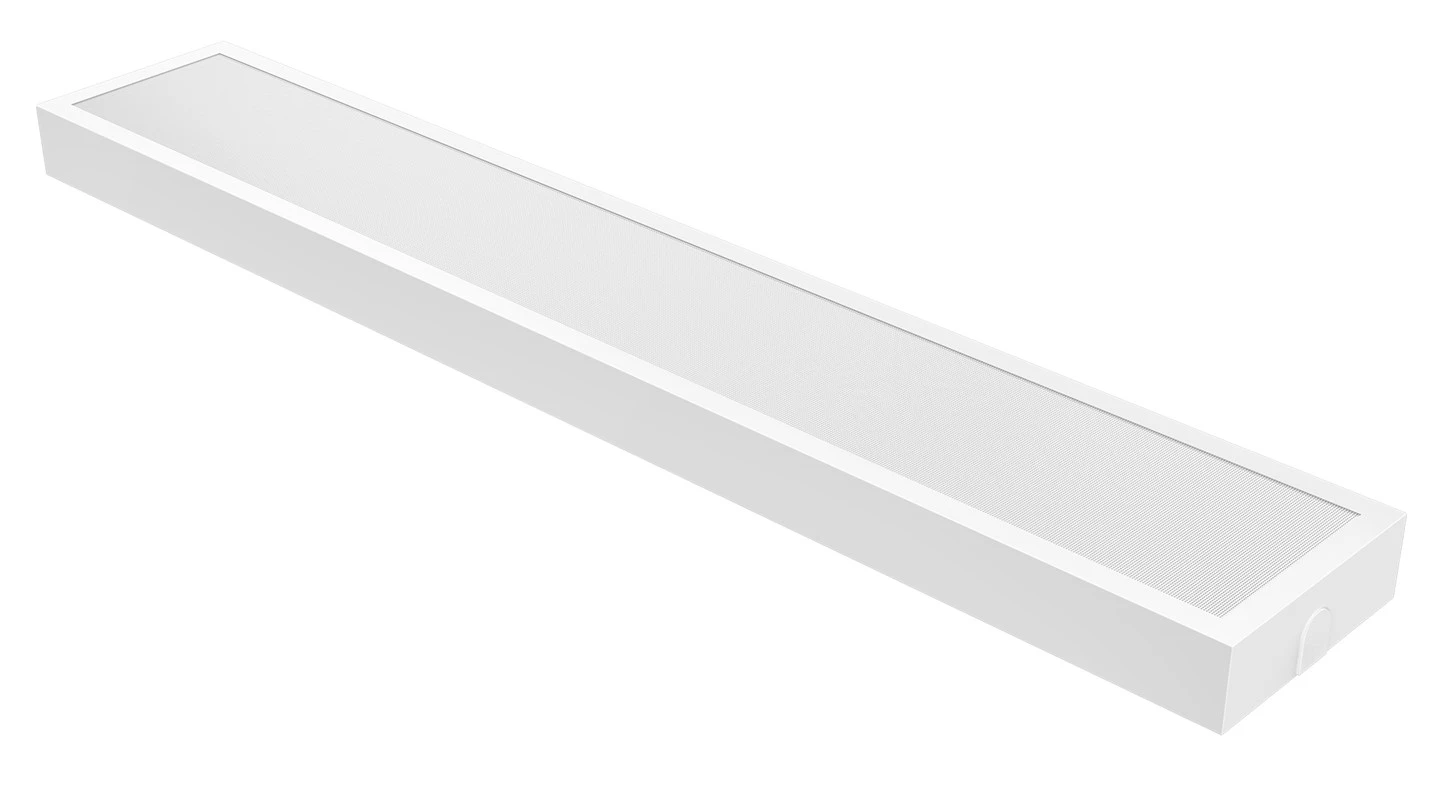

Sutton UGR Batten Light

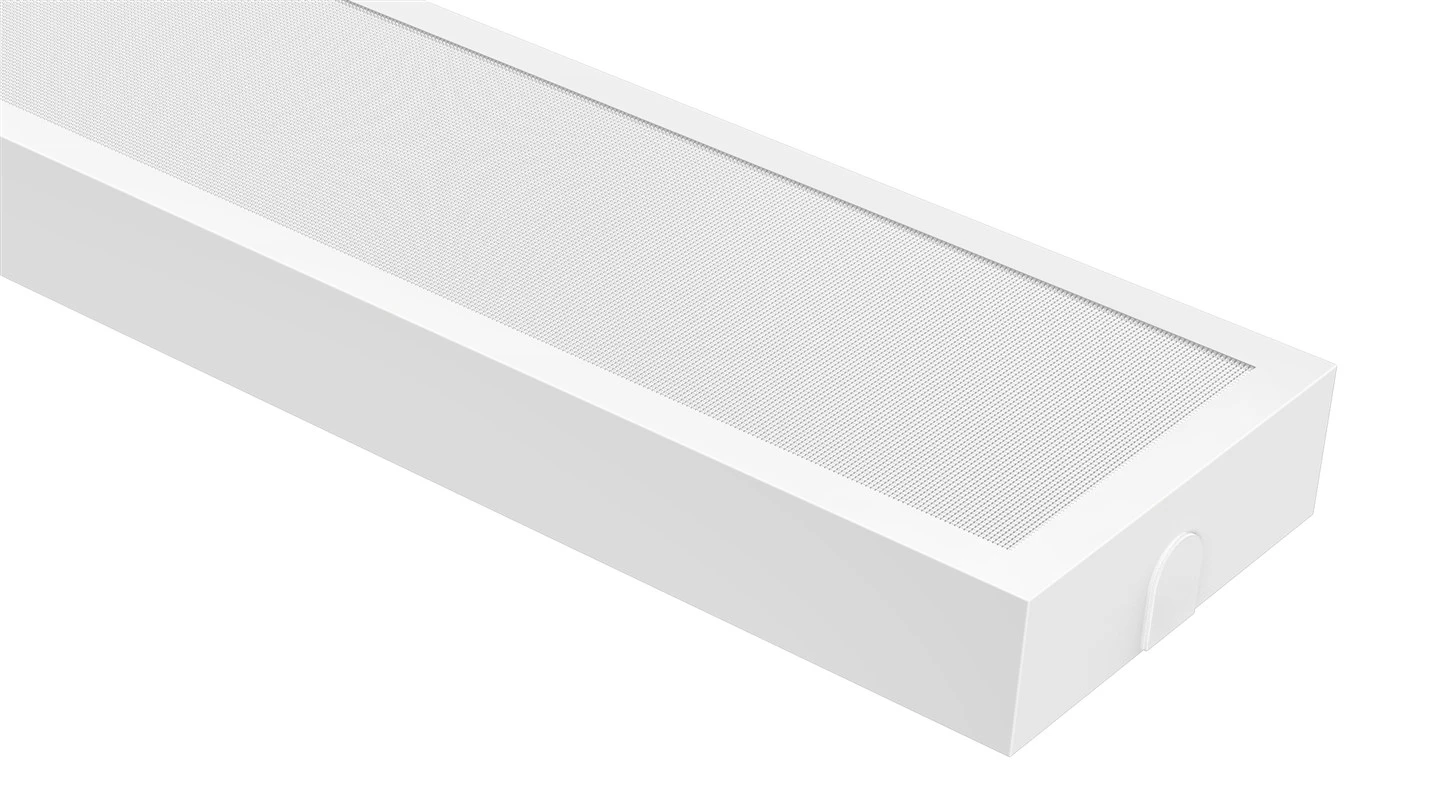

Sutton batten -2

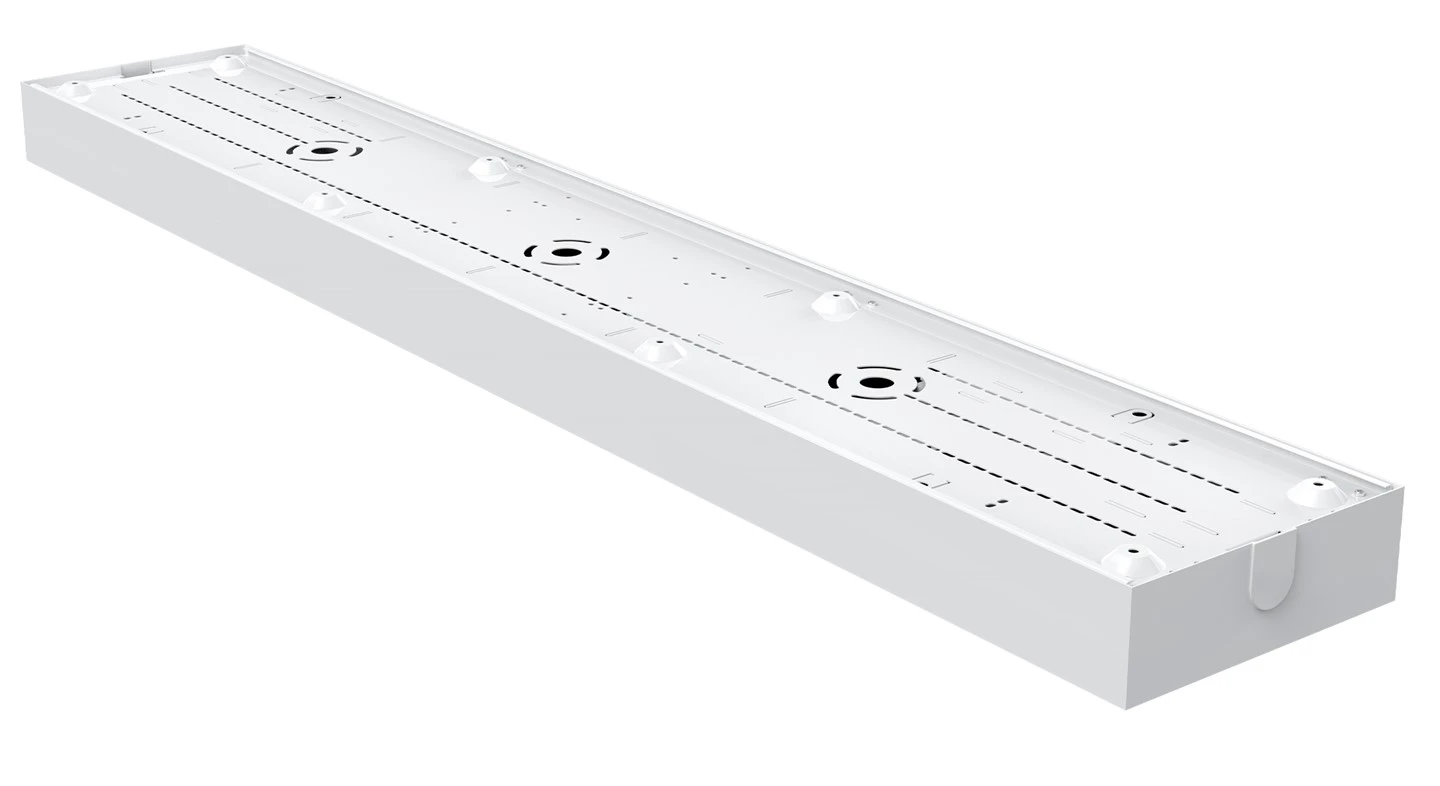

Sutton batten -3

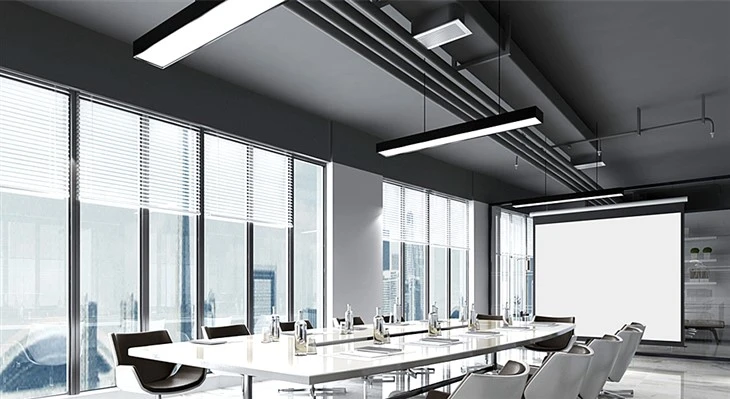

Sutton batten -4

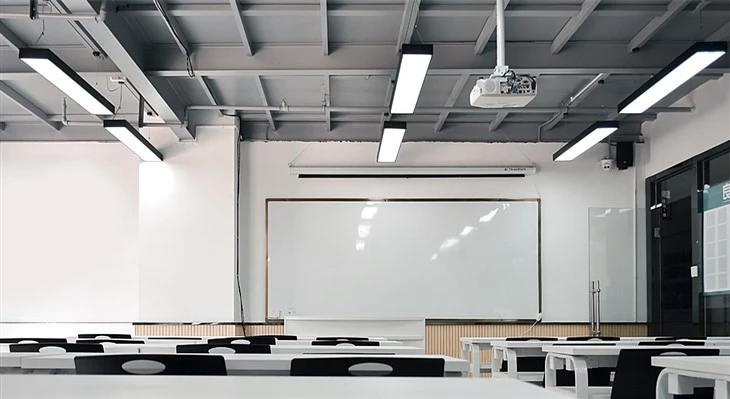

Sutton batten -5

Tavsif:

Sutton lattasi 200 mm po'latdan yasalgan past porloq chiziqli bo'lib, turli funktsiyalarga ega bo'lib, ichki birlik o'rnatish va almashtirishni osonlashtiradi. Sutton batten tijorat / sanoat / ofis va kampus ilovalarida keng qo'llanilgan.

Xususiyat:

>Prizmatik diffuzor, UGR<19

>Vatt va CCT kaliti

>Kengligi: 200 mm, bir nechta ulanishi mumkin

>Bir nechta o'rnatish variantlari

>5 yil kafolat

Send Inquiry

Download

Description

Technical Parameters

KIRISH:

Toppo past porlashi batten - an'anaviy yorug'lik moslamalarini UGR ma'lumotlari bilan almashtiradigan to'liq LED yoritish yechimi. Batenslar bugungi kunda tobora ommalashib bormoqda, chunki ular ko'proq dekorativ va zamonaviy bo'lib, yuqori lümen samaradorligini saqlab qoladi. Ular nafaqat 140 LM/Vt dan oshadi, balki UGRga ham erisha oladi<19 in office and education applications.

Buyurtma kodi	Nominal quvvat	LM/W	Lumen	SDCM/Ra	IP klassi	Mahsulot o'lchami	GW/CTN	QTY/CTN
BT400-04W-PN1-40F01-00	30W/40W	tip.140	tip.4200/5600	<3 / Ra80/90	IP20	L1170W200H60	22,0 kg	4 dona
BT400-05W-PN1-60F01-00	40W/60W	tip.140	tip.5600/8400	<3 / Ra80/90	IP20	L1470W200H60	25,0 kg	4 dona

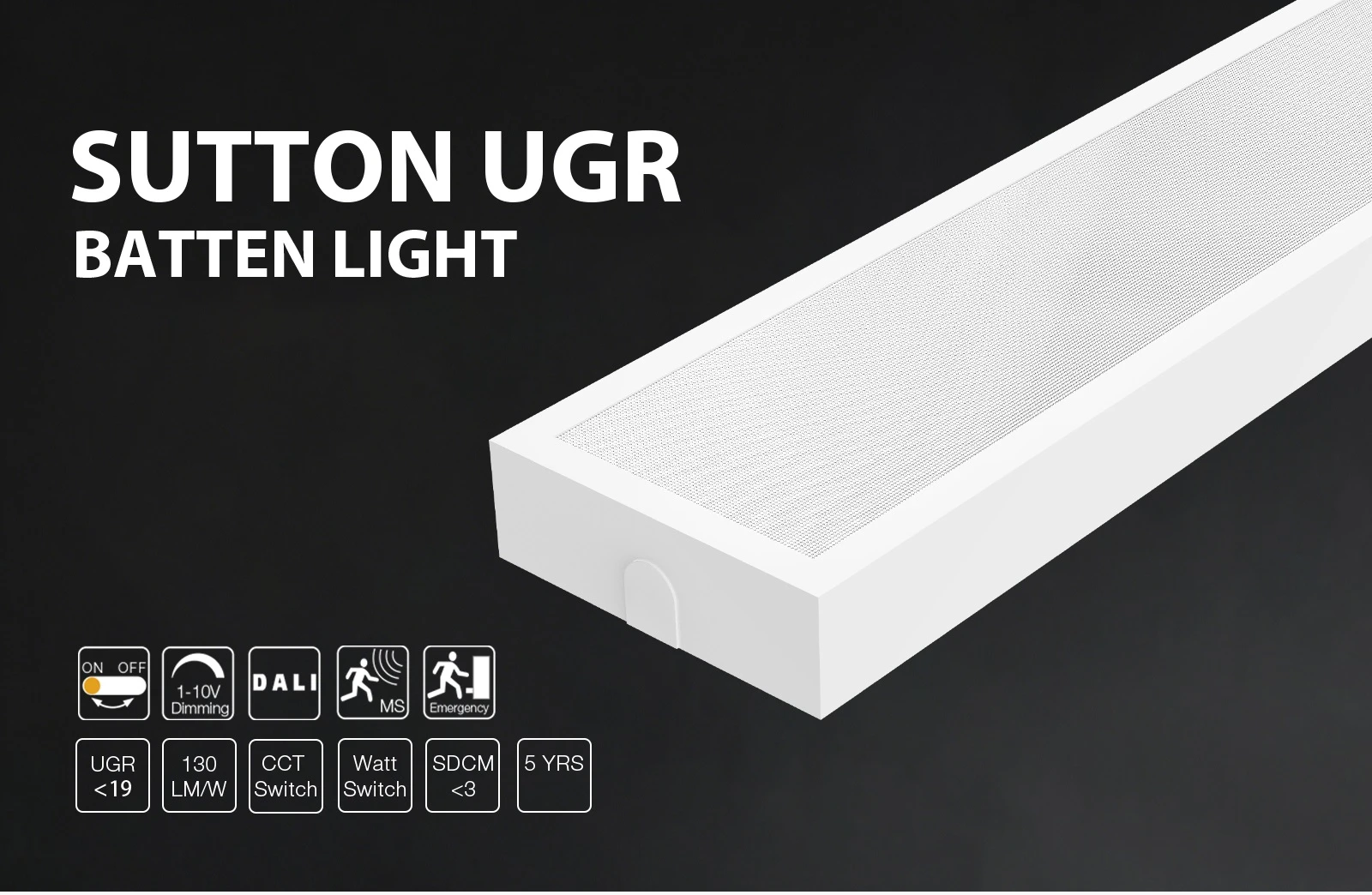

Sutton 01

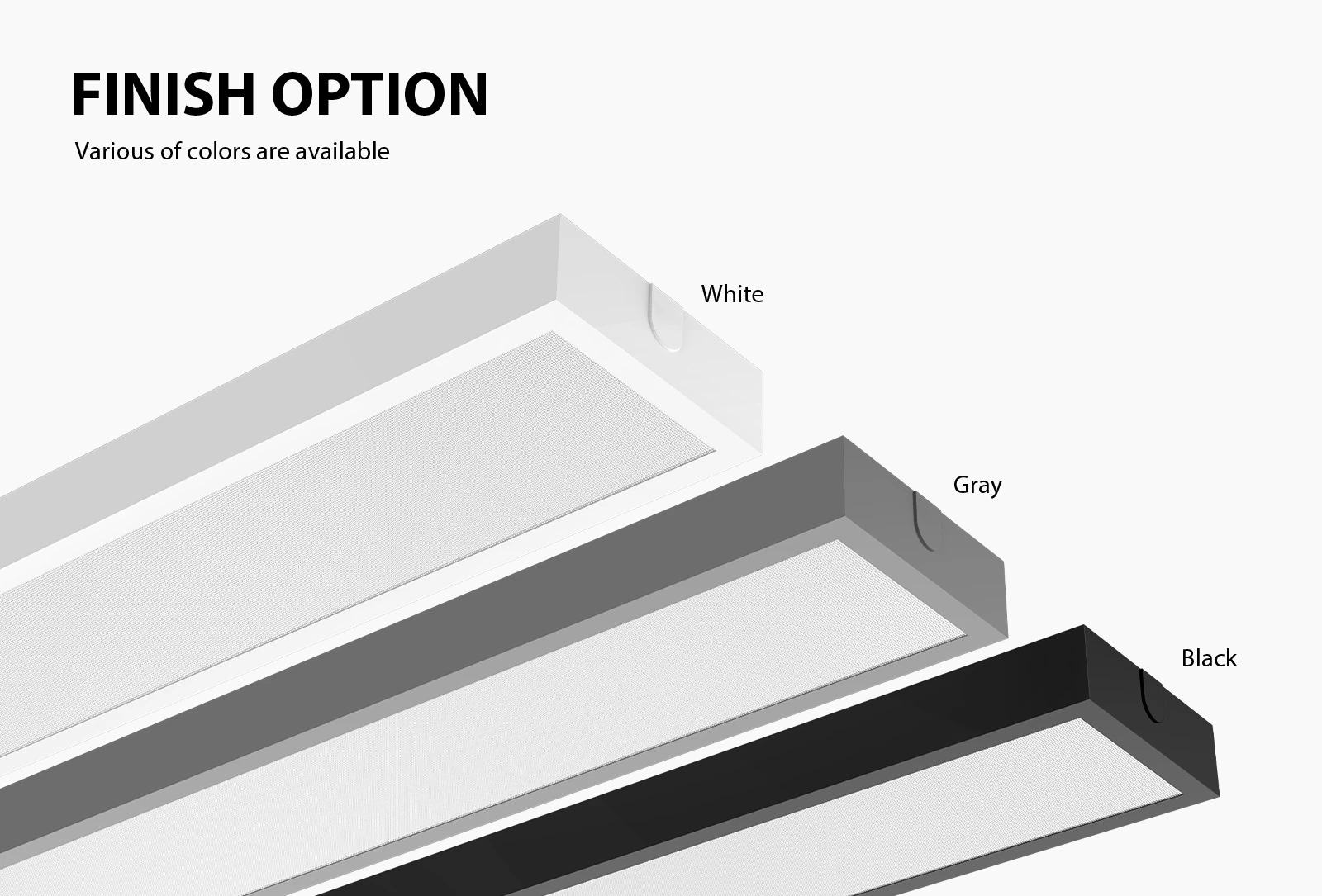

Sutton 02

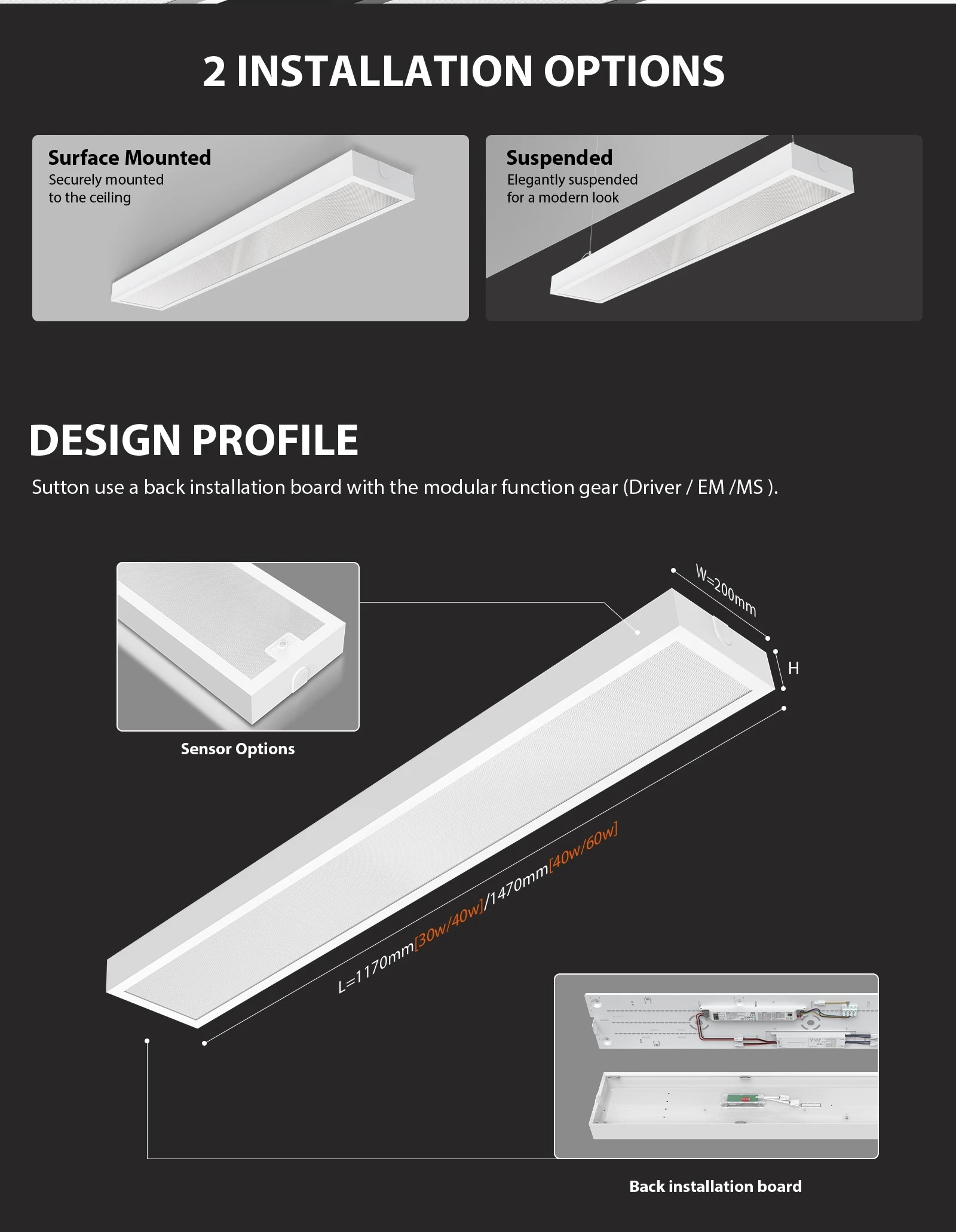

Sutton 03

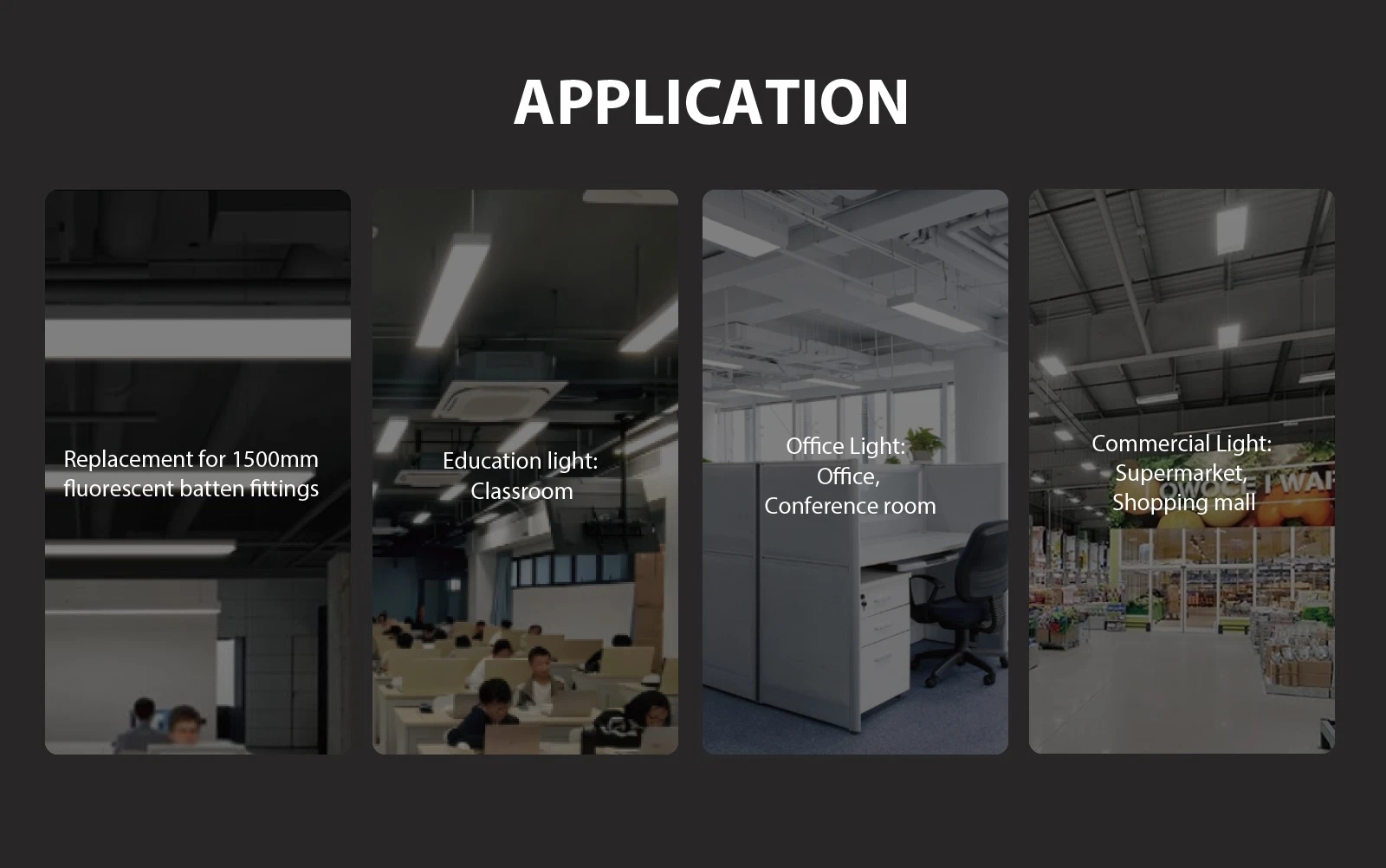

Sutton 04
