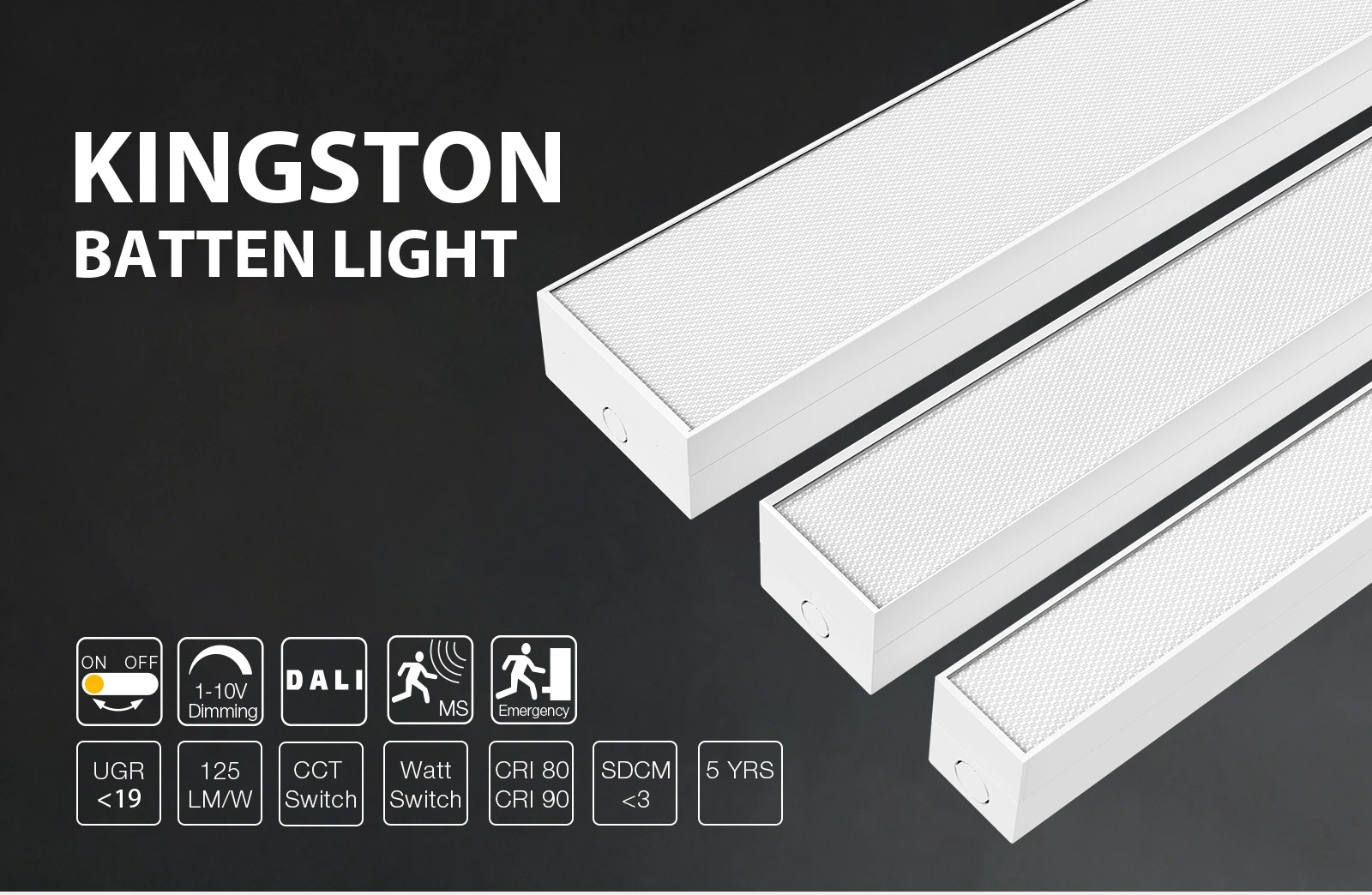

Kingston UGR Batten Light

Kingston UGR Batten Light

Tavsif:

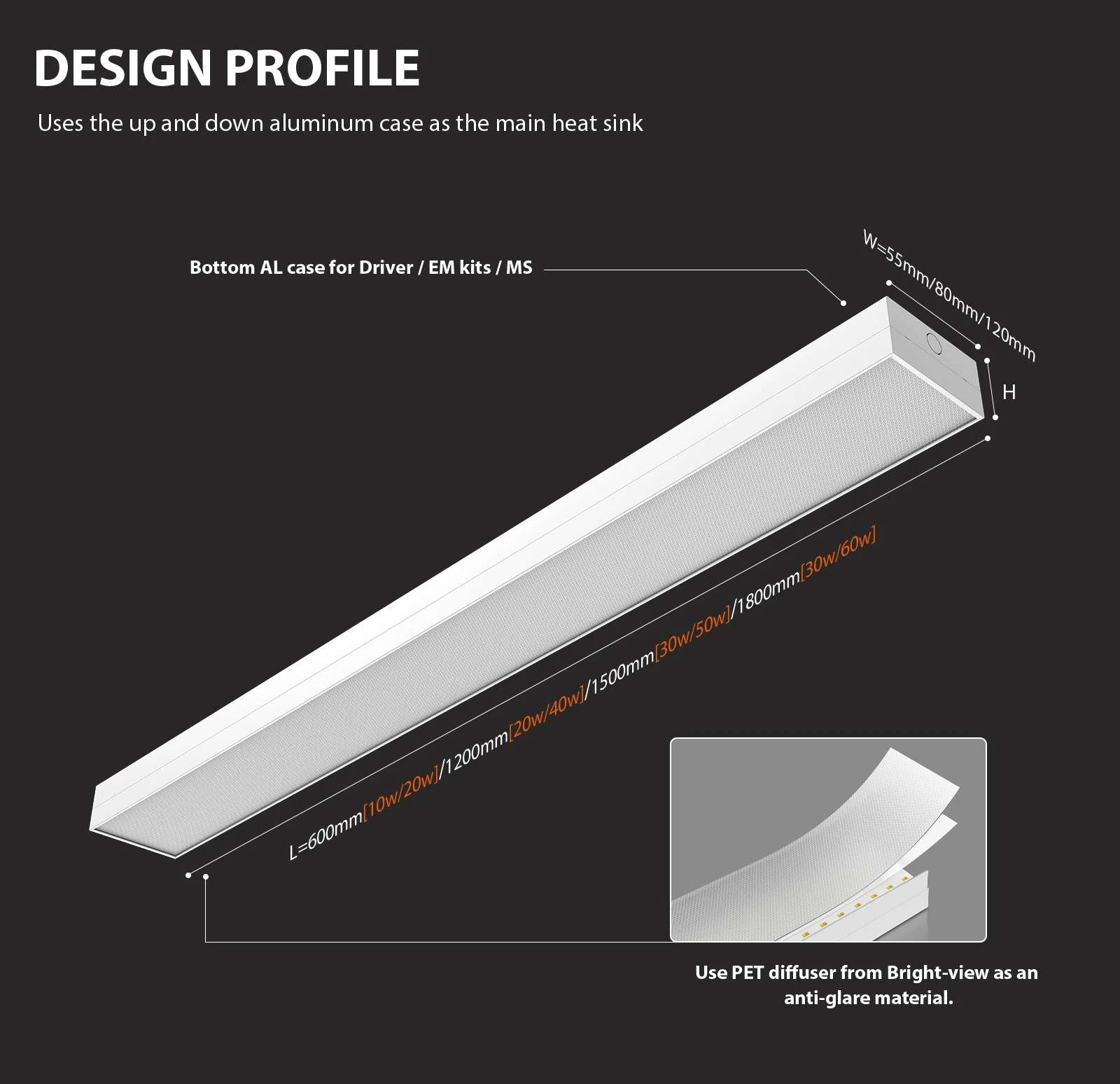

Kingston Batten yuqoriga va pastga alyuminiy korpusni asosiy issiqlik moslamasi sifatida ishlatadi, bu nafaqat isitishning yaxshi tarqalishini ta'minlaydi, balki uzoq vaqt kafolat beradi.
Kingston Batten Bright koʻrinishidagi PET diffuzorini{0}}chaqiriqlarga qarshi-material sifatida ishlatadi, bu nafaqat UGRni kafolatlaydi<19, but also guarantees the beam angle of these range of batten series. The wattage and CCT switch on the driver as a standard for the kingston battens. It helps customers reduce inventory while also enabling fast delivery.









Xususiyat:

>UGR<19 with brightview film

>LED drayverini CCT tugmasi

>55 mm|80 mm|120 mm kengliklari mavjud

>Ra80 yoki Ra90, SDCM<3

>Kabel kirish uchun oxirgi yoki orqa besa teshigi

>Variantlar sifatida turli xil funktsiyalar

>2ft / 4ft / 5ft / 6ft o'lchami mavjud

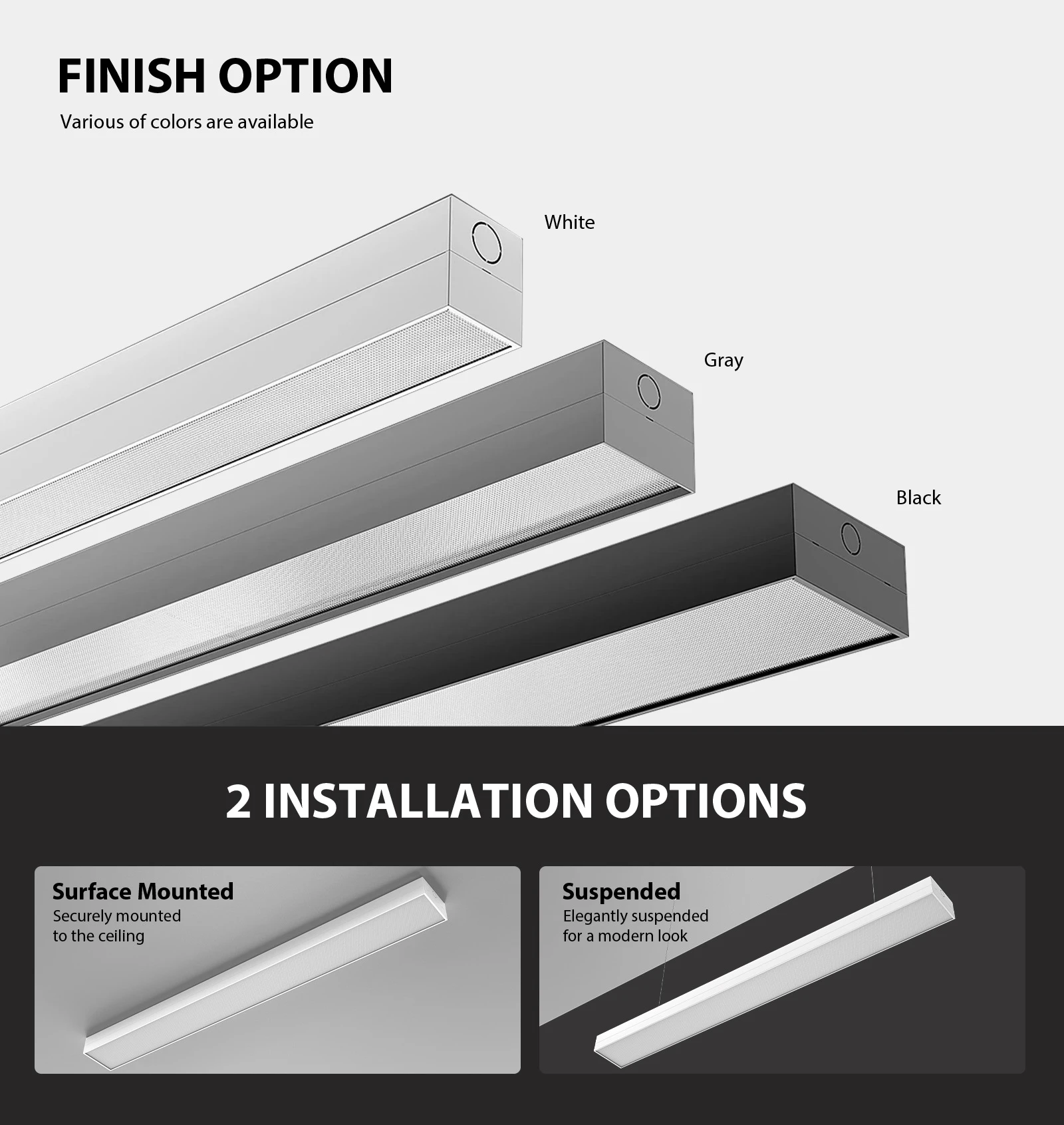

>Dafn qilingan / Yuzaki o'rnatish / Osma o'rnatish

>5 yil kafolat

Send Inquiry
Download
Description
Technical Parameters

KIRISH:

Kinston Batten tanlash uchun 55 mm, 80 mm va 120 mm kengliklarni taklif etadi, bu esa mijozlarni turli tijorat va ofis ilovalariga ko'proq qiziqtiradi.



MULK:

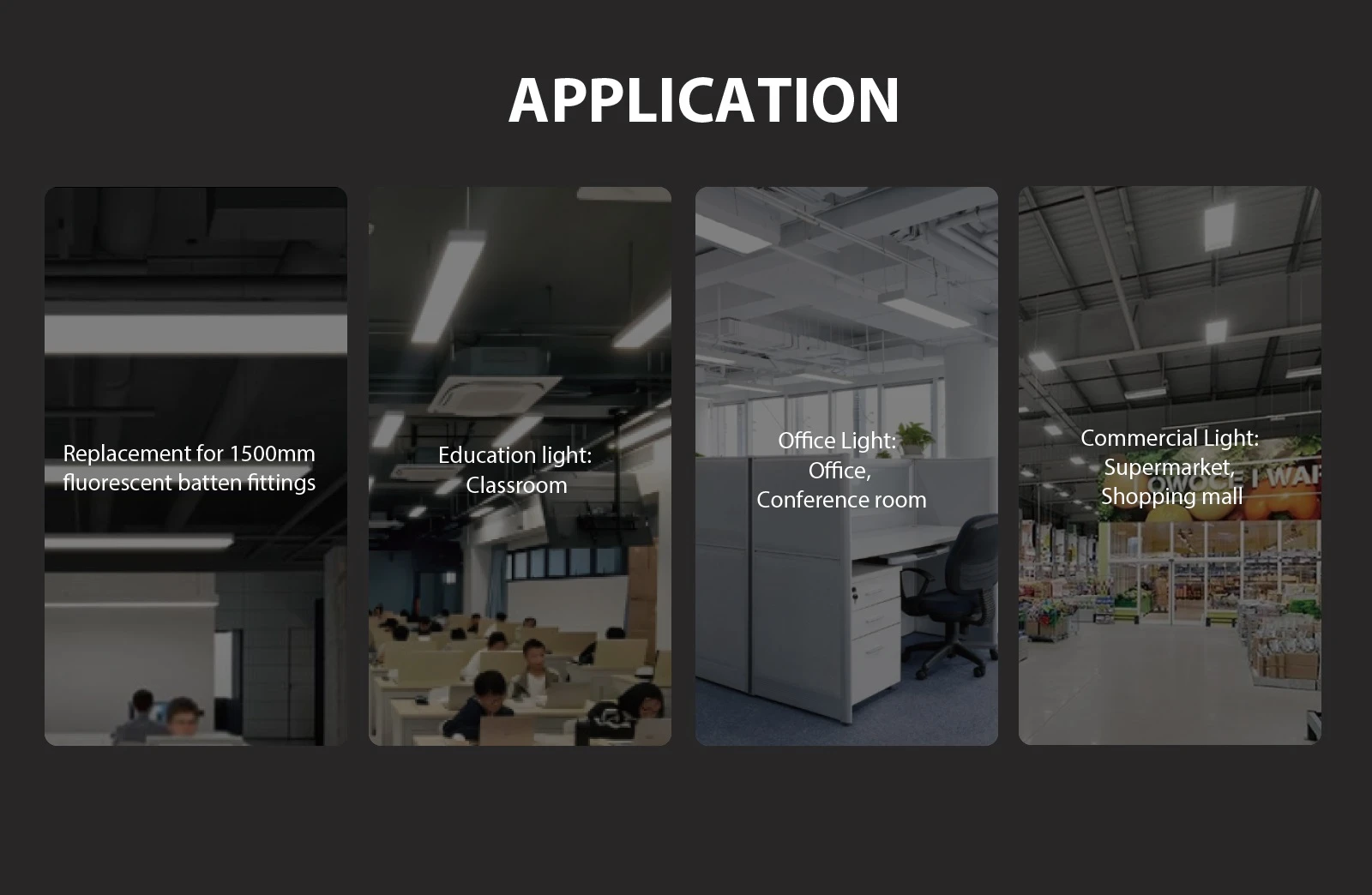

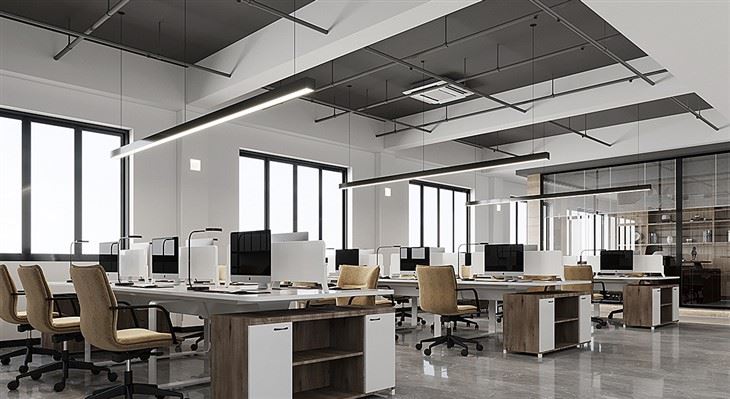

Kingston UGR Batten 55 mm maksimal vizual qulaylikni ta'minlash bilan birga yuqori yorug'lik ishlashini ta'minlash uchun mo'ljallangan. Samarali va oqlangan, bu 2 fut 4 fut 5 fut LED chiziqli yorug'lik korporativ ofislardan chakana savdo muhiti va sanoat sharoitlariga qadar keng ko'lamli ilovalar uchun juda mos keladi. Alyuminiy korpus ajoyib issiqlik qabul qiluvchi va yuqori texnologiyali SMD2835{6}} lumen chiqishini oshiradi.



Buyurtma kodi

Kengligi

Nominal quvvat

LM/W

Lumen

SDCM/Ra

Vatt/CCT
Oʻzgartirish

Mahsulot o'lchami

GW/CTN

QTY/CTN

BT100-02W-DT1-20F01

55 mm

10/20W

tip.130

tip.1300/2600

<3/ Ra80/90

Y

L600xW55xH64

6,0 kg

8 dona

BT100-04W-DT1-40F01

55 mm

20/40W

tip.130

typ.2600/5200

<3/ Ra80/90

Y

L1200xW55xH64

11,5 kg

8 dona

BT100-05W-DT1-50F01

55 mm

30/50W

tip.130

tip.3900/6500

<3/ Ra80/90

Y

L1500xW55xH64

14,5 kg

8 dona

BT100-06W-DT1-60F01

55 mm

30/60W

tip.130

tip.3900/7800

<3/ Ra80/90

Y

L1800xW55xH64

17 kg

8 dona

BT110-02W-DT1-20F01

80 mm

10/20W

tip.130

tip.1300/2600

<3/ Ra80/90

Y

L600xW80xH64

7,0 kg

6 dona

BT110-04W-DT1-40F01

80 mm

20/40W

tip.130

typ.2600/5200

<3/ Ra80/90

Y

L1200xW80xH64

12,0 kg

6 dona

BT110-05W-DT1-50F01

80 mm

30/50W

tip.130

tip.3900/6500

<3/ Ra80/90

Y

L1500xW80xH64

14,0 kg

6 dona

BT110-06W-DT1-60F01

80 mm

30/60W

tip.130

tip.3900/7800

<3/ Ra80/90

Y

L1800xW80xH64

18,0 kg

6 dona

BT120-02W-DT1-20F01

120 mm

10/20W

tip.130

tip.1300/2600

<3/ Ra80/90

Y

L600xW120xH64

7,0 kg

4 dona

BT120-04W-DT1-40F01

120 mm

20/40W

tip.130

typ.2600/5200

<3/ Ra80/90

Y

L1200xW120xH64

10,5 kg

4 dona

BT120-05W-DT1-50F01

120 mm

30/50W

tip.130

tip.3900/6500

<3/ Ra80/90

Y

L1500xW120xH64

13,0 kg

4 dona

BT120-06W-DT1-60F01

120 mm

30/60W

tip.130

tip.3900/7800

<3/ Ra80/90

Y

L1800xW120xH64

15,5 kg

4 dona



Kingston 01

Kingston 02

Kingston 03

Kingston 04
