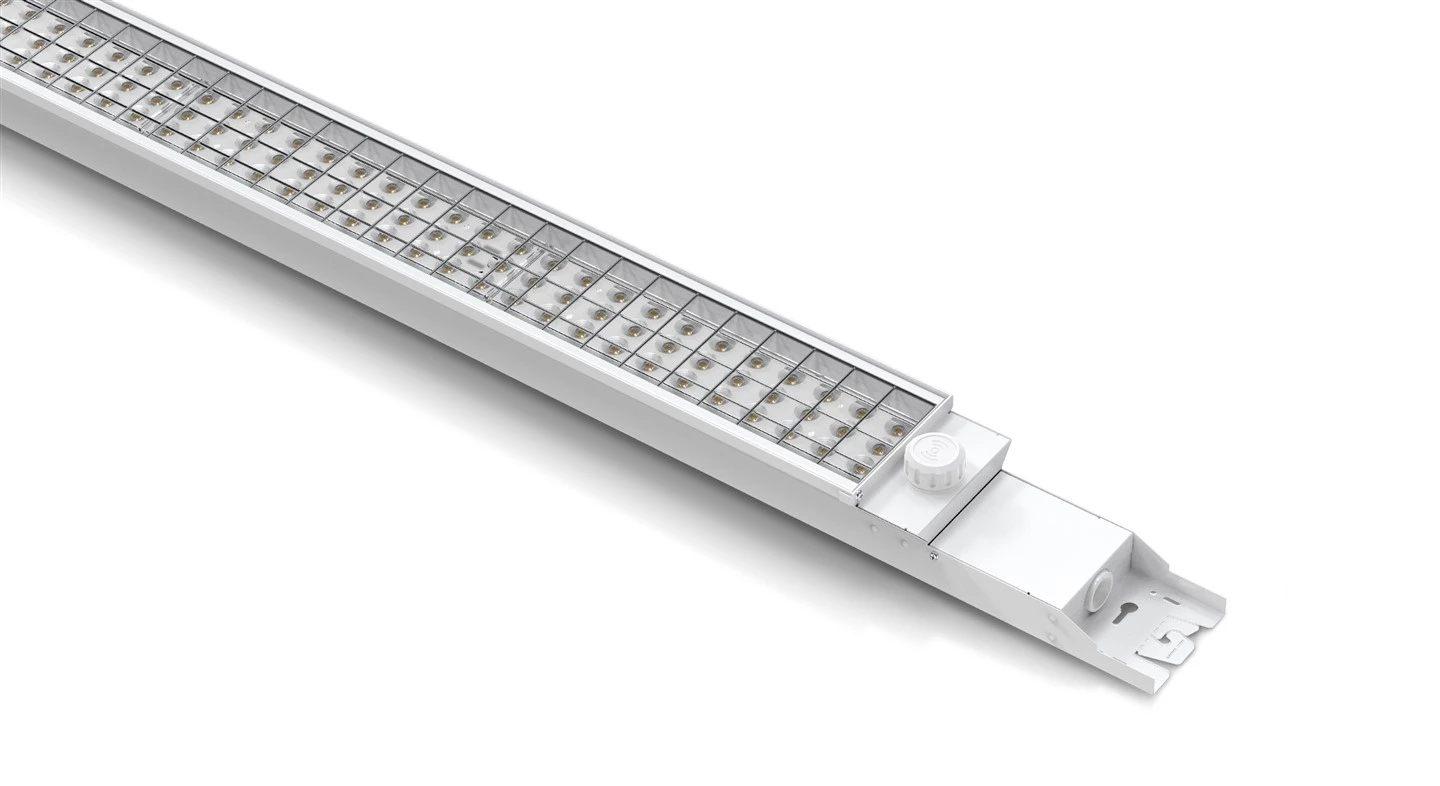

Noridc Industry Light

Tavsif:

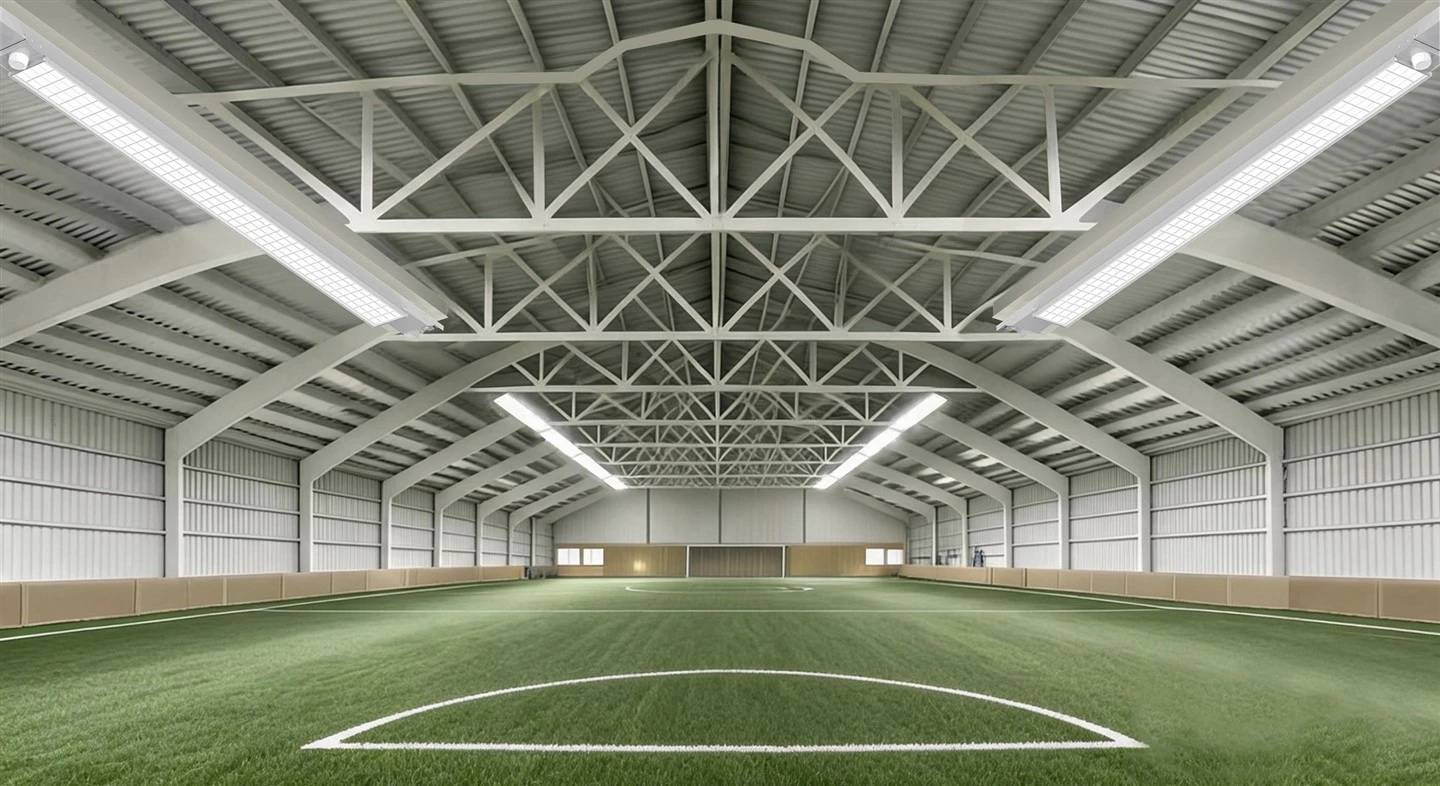

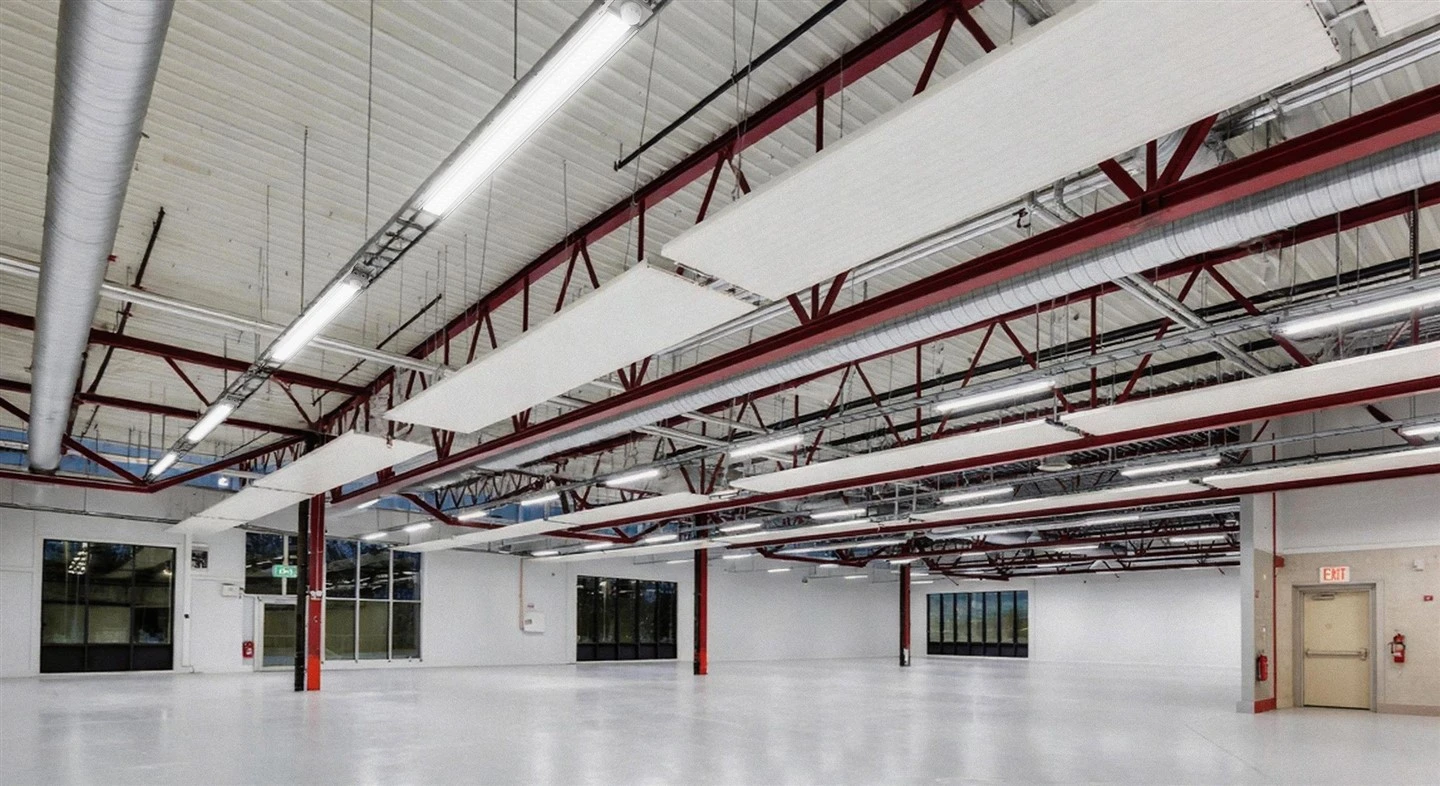

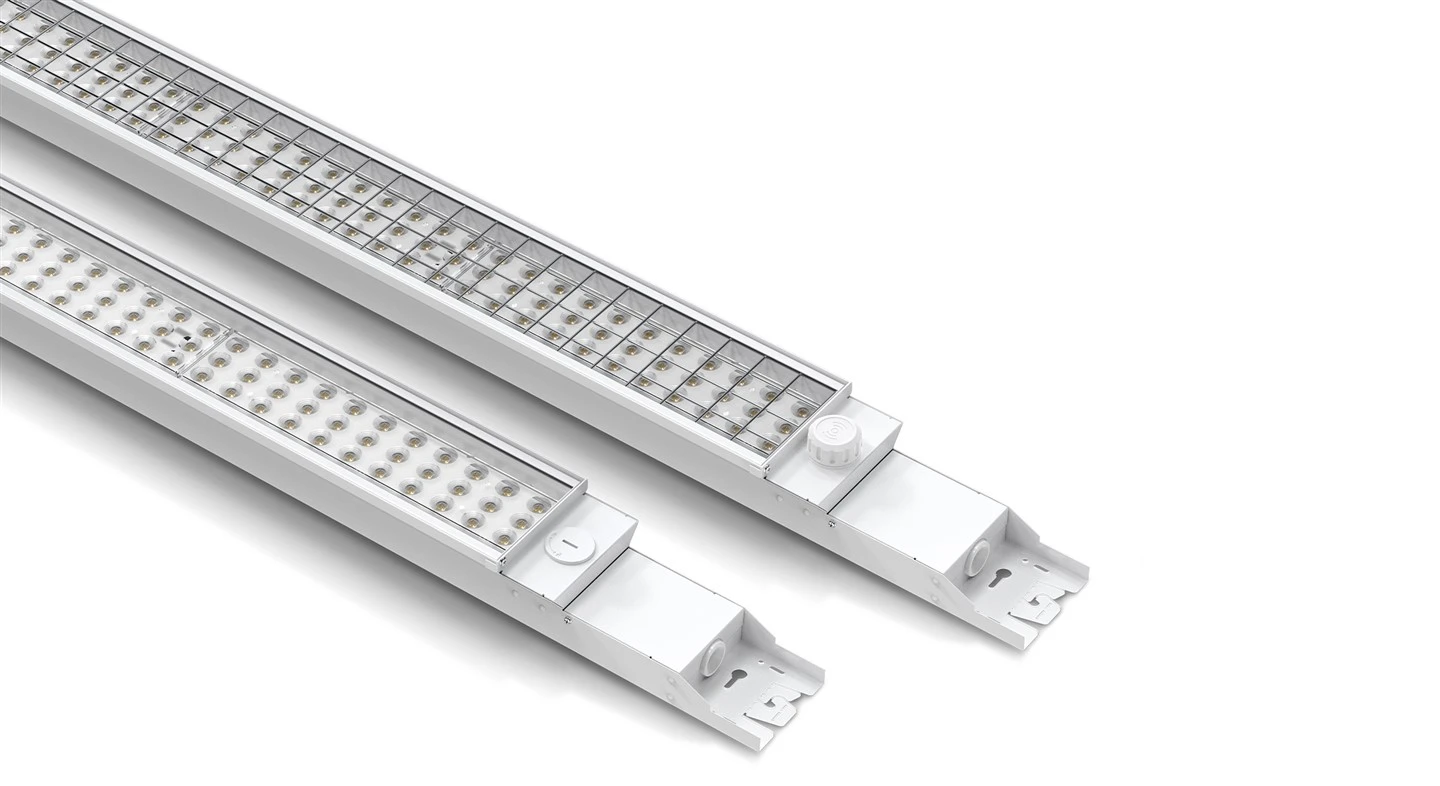

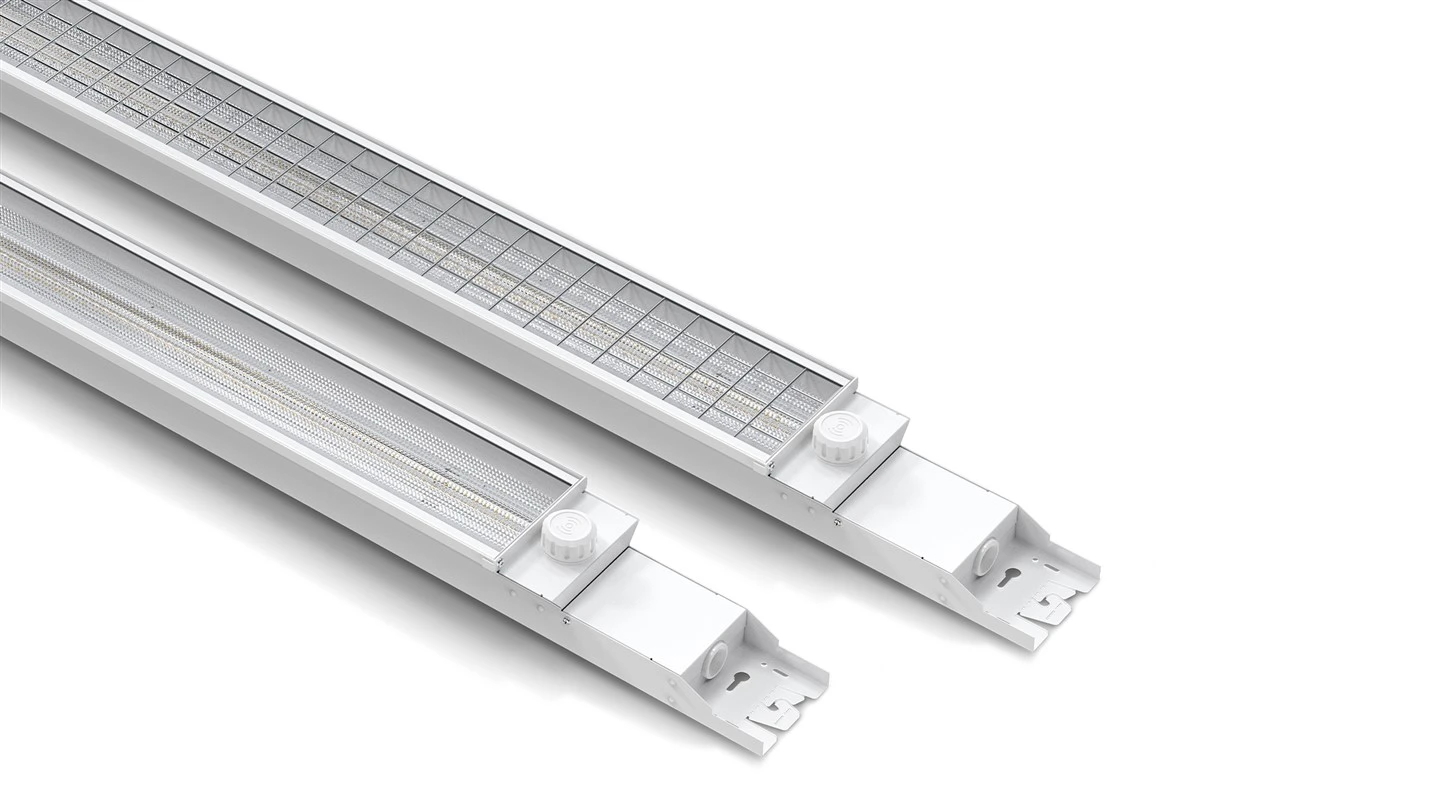

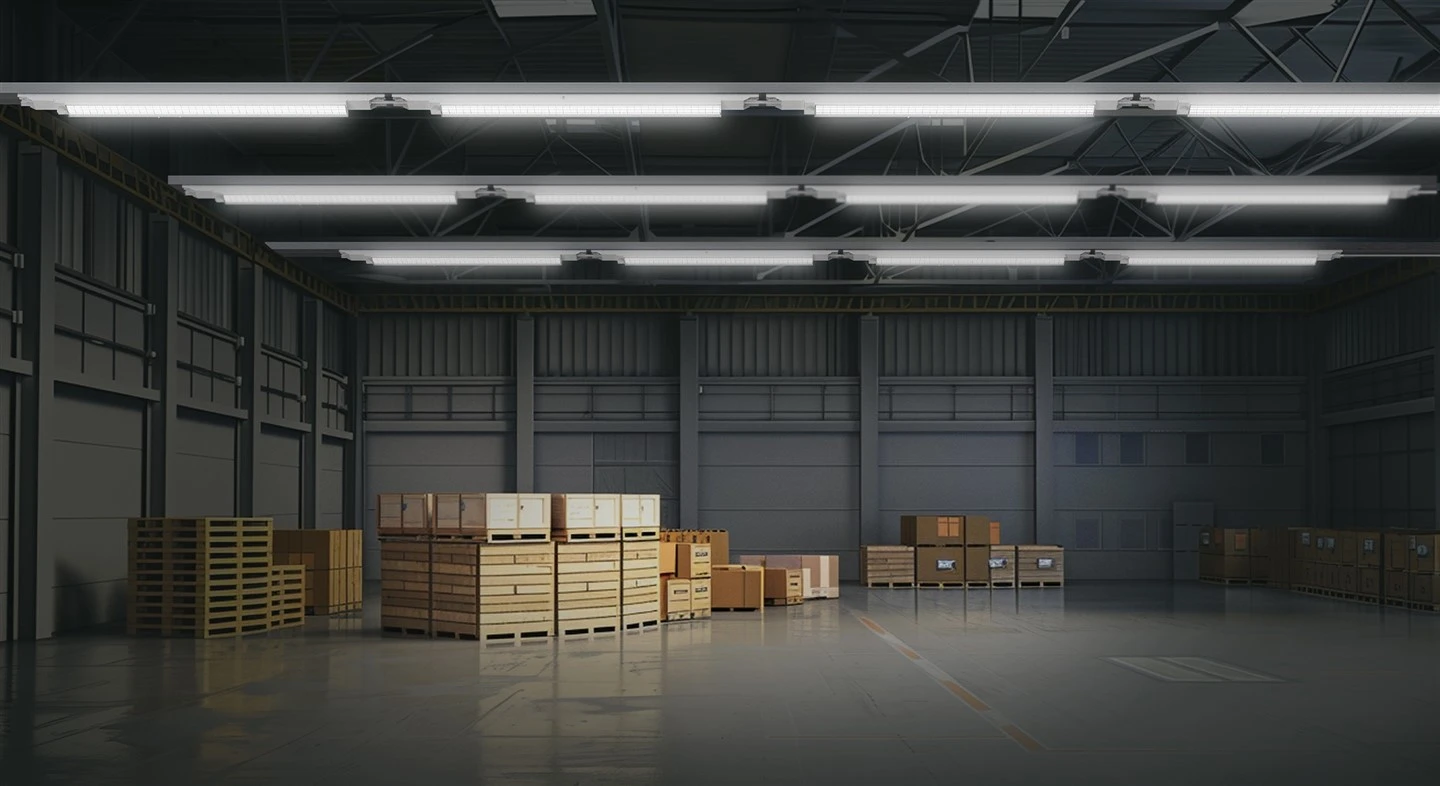

Nord Line moslashuvchan funksiya va aniq yorug'lik taqsimoti bilan yaratilgan. U linza va ilgak dizayni bilan prizmatik versiya bilan birga keladi. Nord Line turli xil nur burchagi variantlari 4-20 metrgacha bo'lgan turli balandlikdagi sanoat ilovalari uchun o'rnatish imkonini beradi. To'r to'pni isbotlash uchun IK10 himoyasi bilan nord liniyasini yaratadi, bu esa nord liniyasini ko'proq sanoat va sport ilovalari uchun ishlatishga imkon beradi.

Xususiyat:

>180 LM/Vt gacha

>5CCT va vatt sozlanishi

>LED moduli va drayverni o'zgartirish mumkin

>Plug va play sensor moduli

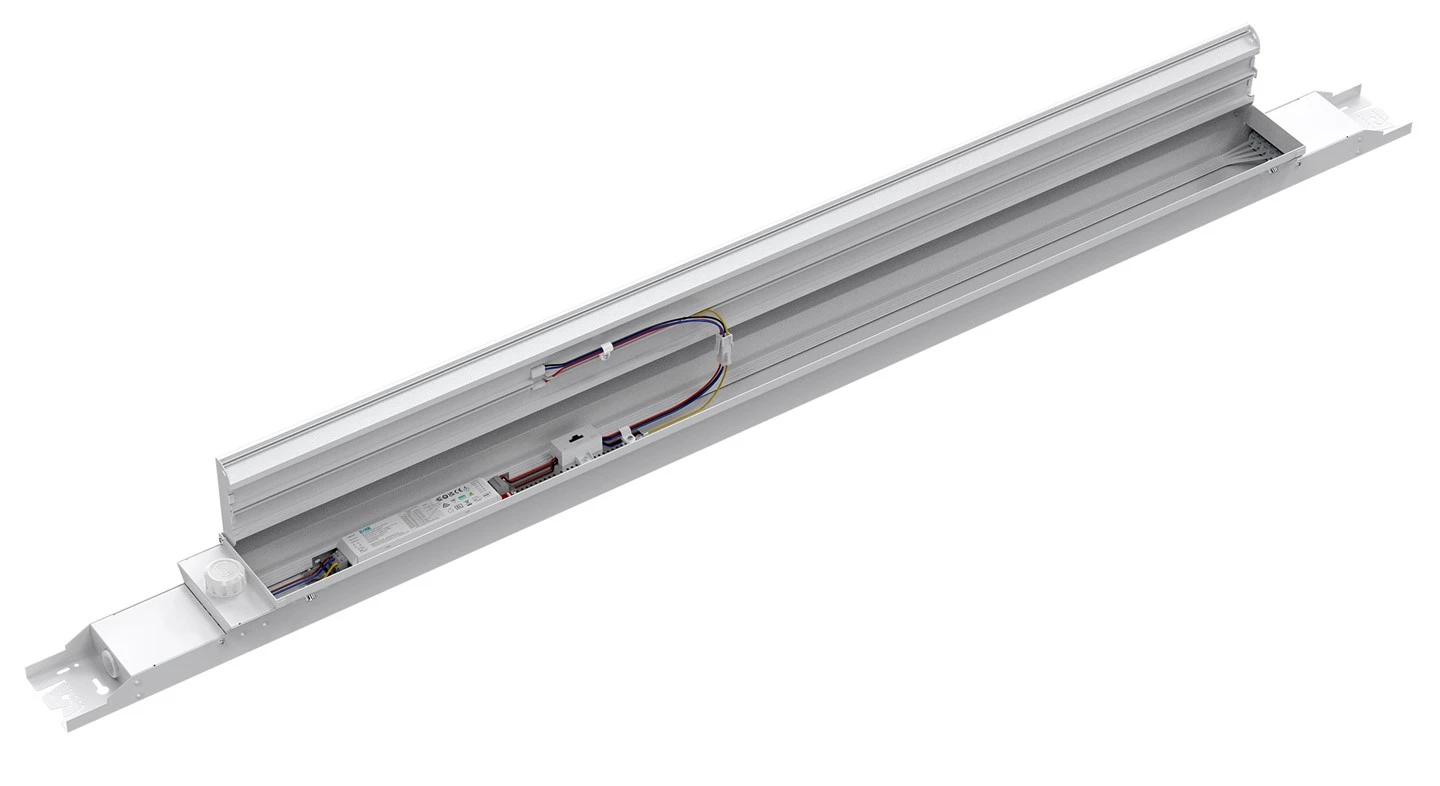

>Menteşa dizayni

>IP23 / IK08 YOKI IK10

>7 yil kafolat

Send Inquiry

Download

Description

Technical Parameters

Yengil modul	Buyurtma kodi	Uzunlik	Nominal quvvat	LM/W	CRI	SDCM	Mahsulot o'lchami (MM)
Ob'ektiv	NL100-04W-DT1-80F01	1256 mm	60-65-75-80W	30 daraja 180-190lm/w 60 daraja 185-195lm/w 90 daraja 180-190lm/w	Ra>80	<3	L1256xW105xH60
Ob'ektiv	NL100-04W-DT1-75D01	1256 mm	60-65-75-80W	30 daraja 180-190lm/w 60 daraja 185-195lm/w 90 daraja 180-190lm/w	Ra>80	<3	L1256xW105xH60
Ob'ektiv	NL100-05W-DT1-10F01	1550 mm	70-80-90-100W	30 daraja 180-190lm/w 60 daraja 185-195lm/w 90 daraja 180-190lm/w	Ra>80	<3	L1550xW105xH60
Ob'ektiv	NL100-05W-DT1-10D01	1550 mm	70-80-90-100W	30 daraja 180-190lm/w 60 daraja 185-195lm/w 90 daraja 180-190lm/w	Ra>80	<3	L1550xW105xH60
Ob'ektiv	NL100-05W-DT1-12F01	1844 mm	65-85-100-120W	30 daraja 180-190lm/w 60 daraja 185-195lm/w 90 daraja 180-190lm/w	Ra>80	<3	L1844xW105xH60
Ob'ektiv	NL100-05W-DT1-12D01	1844 mm	65-85-100-120W	30 daraja 180-190lm/w 60 daraja 185-195lm/w 90 daraja 180-190lm/w	Ra>80	<3	L1844xW105xH60
Prizmatik V optik	NL110-04W-DT1-80F01	1256 mm	60-65-75-80W	yozing. 165LM/W	Ra>80	<3	L1256xW105xH60
Prizmatik V optik	NL110-04W-DT1-75D01	1256 mm	60-65-75-80W	yozing. 165LM/W	Ra>80	<3	L1256xW105xH60
Prizmatik V optik	NL110-05W-DT1-10F01	1550 mm	70-80-90-100W	yozing. 165LM/W	Ra>80	<3	L1550xW105xH60
Prizmatik V optik	NL110-05W-DT1-10D01	1550 mm	70-80-90-100W	yozing. 165LM/W	Ra>80	<3	L1550xW105xH60
Prizmatik V optik	NL110-05W-DT1-12F01	1844 mm	65-85-100-120W	yozing. 165LM/W	Ra>80	<3	L1844xW105xH60
Prizmatik V optik	NL110-05W-DT1-12D01	1844 mm	65-85-100-120W	yozing. 165LM/W	Ra>80	<3	L1844xW105xH60

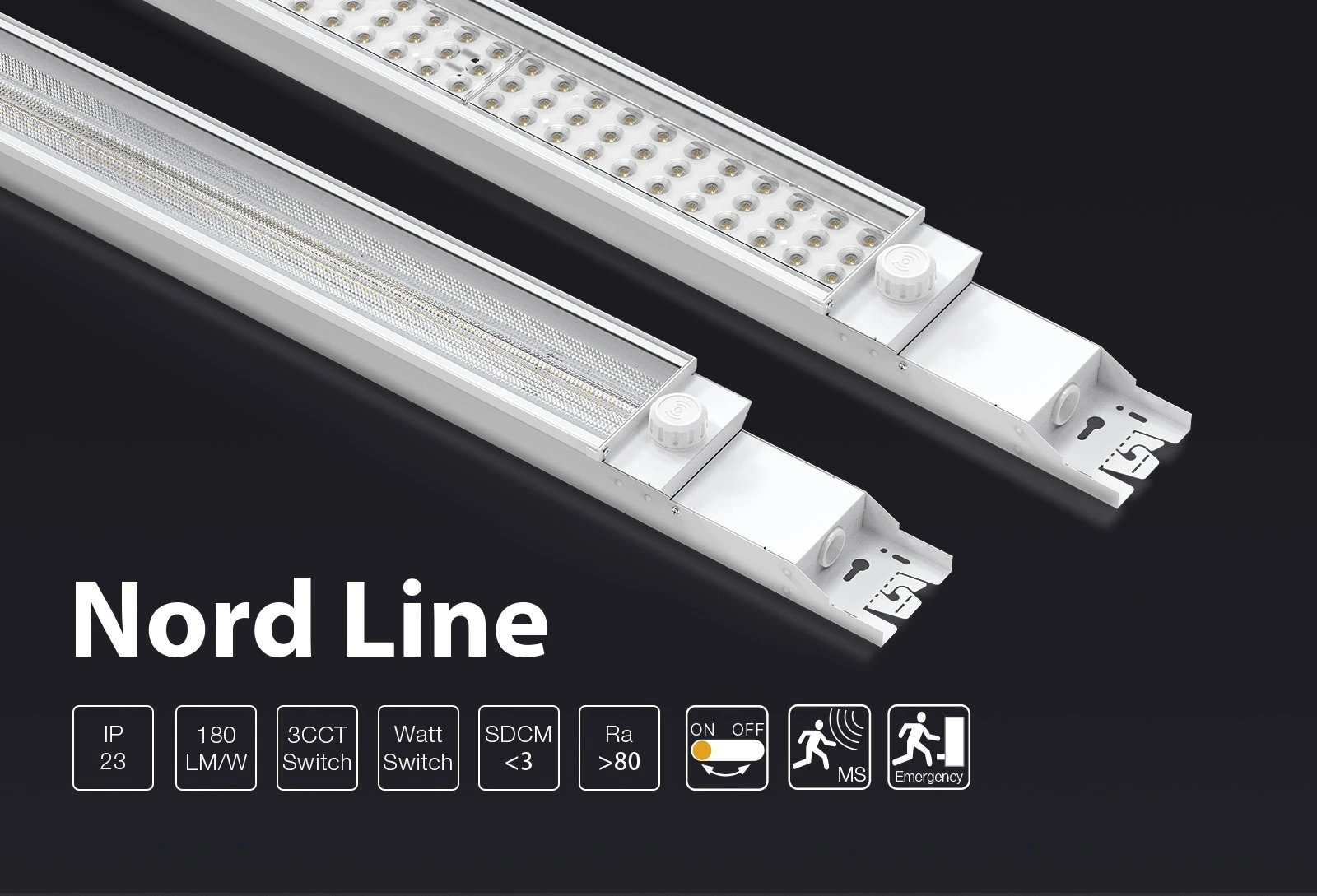

Nord-Line01

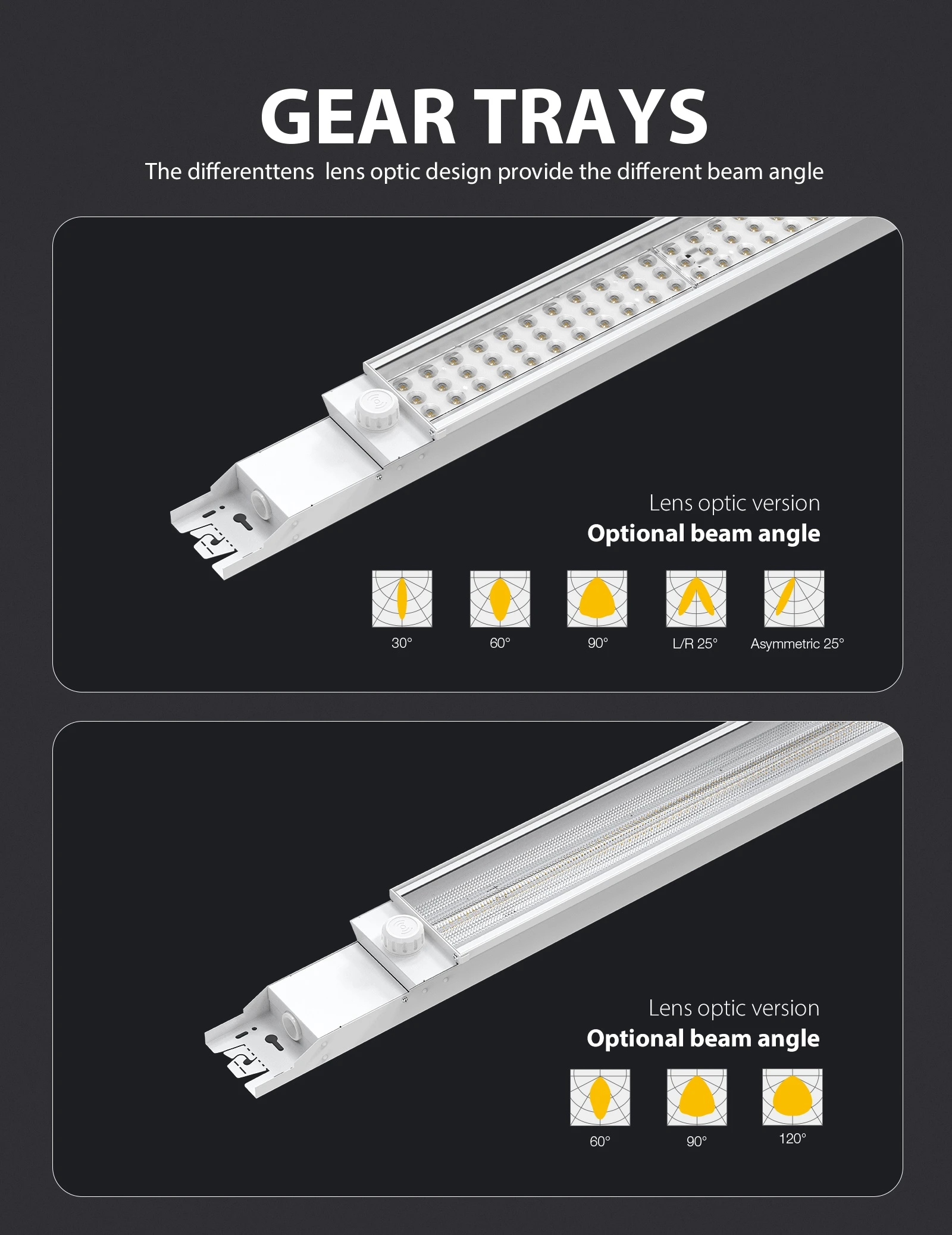

Nord-Line02

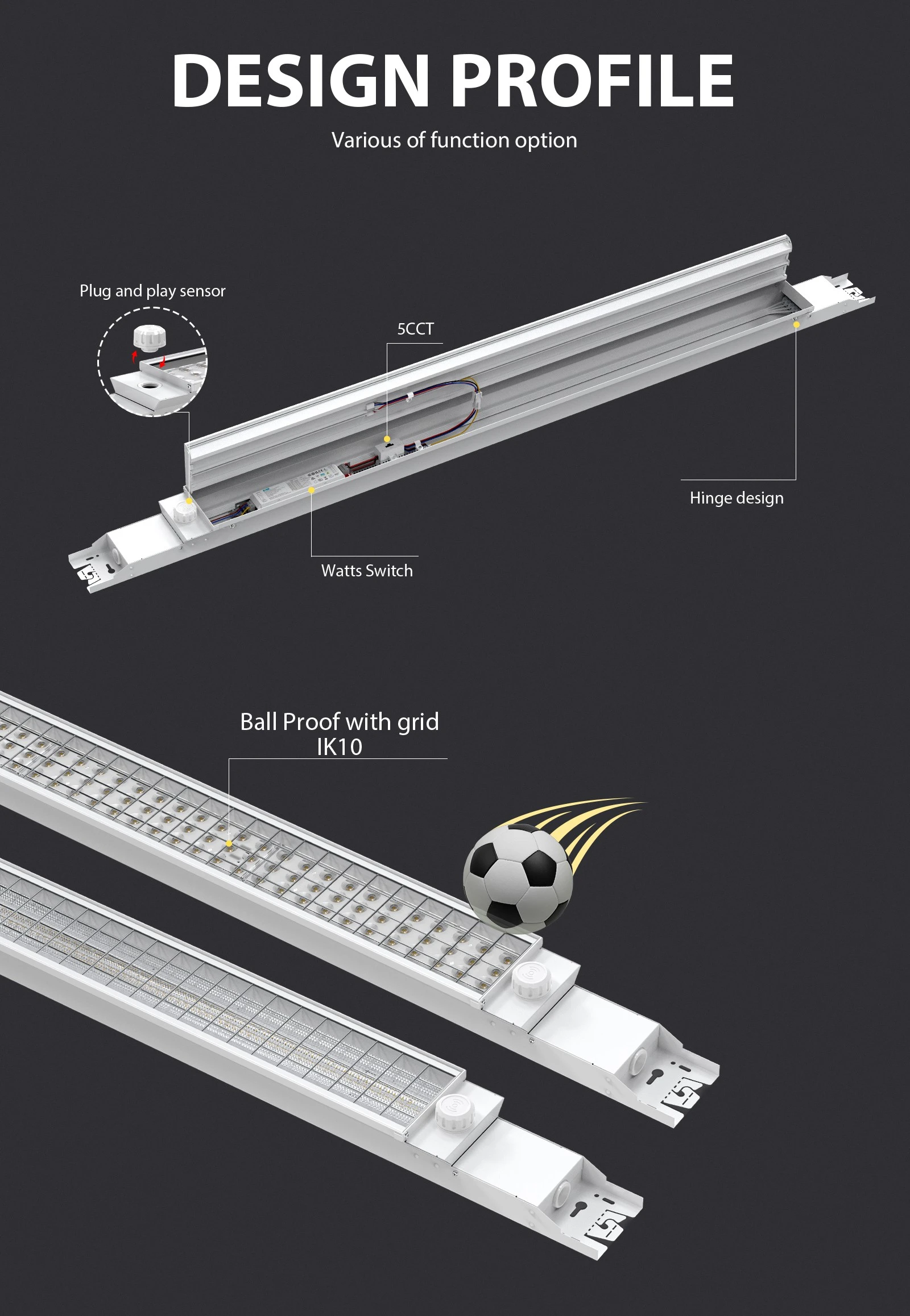

Nord-Line03

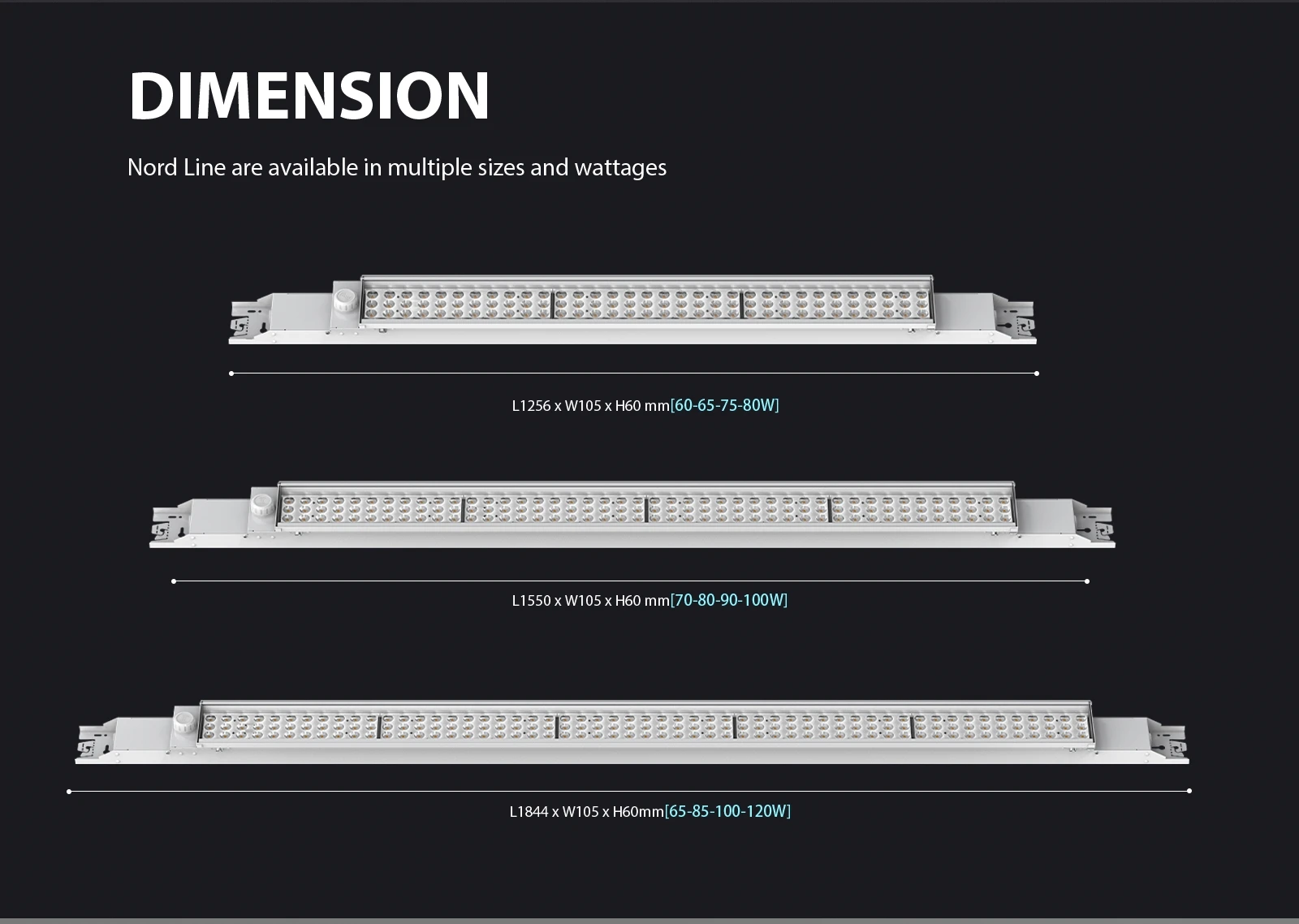

Nord-Line04

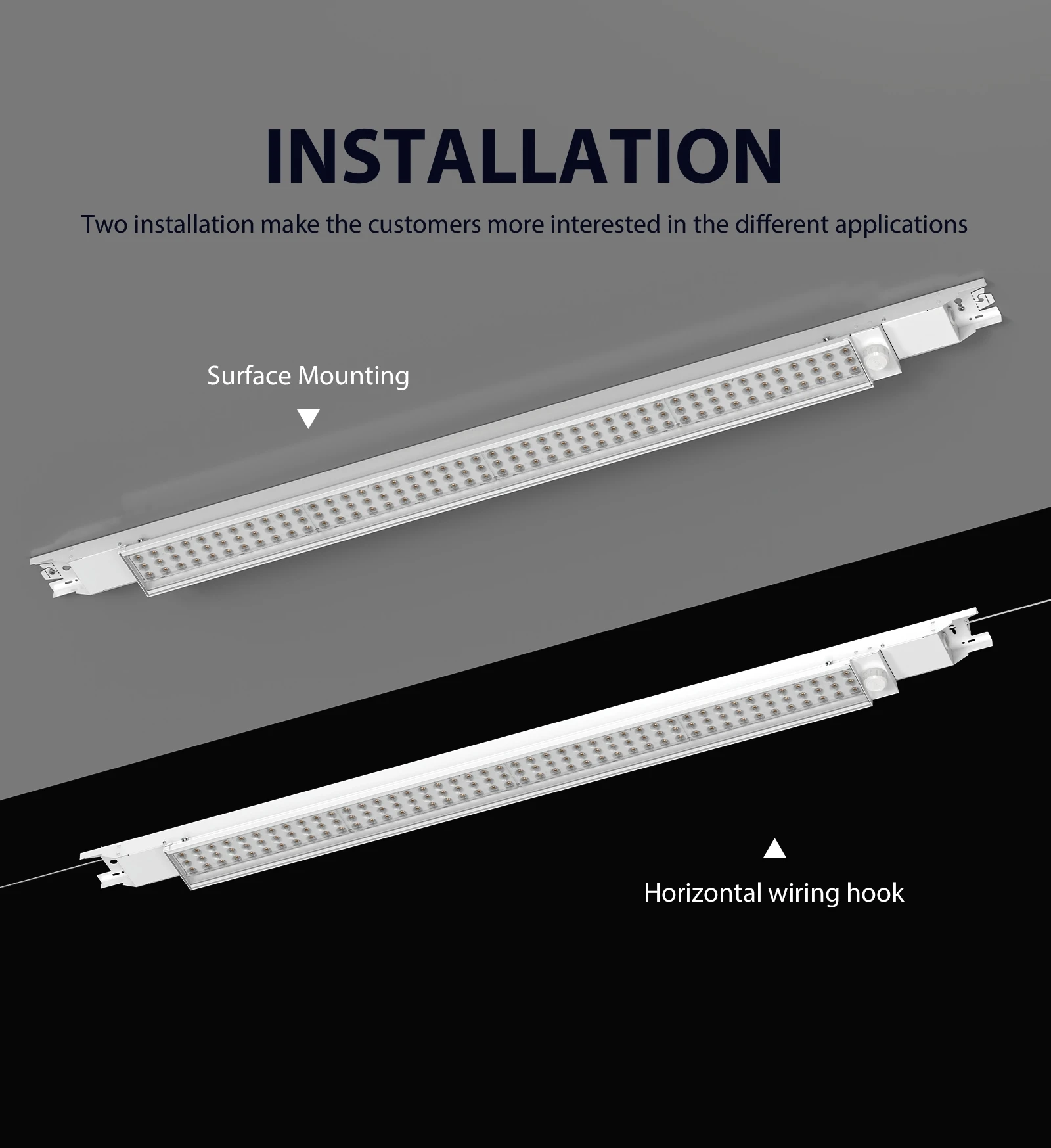

Nord-Line05
